Sandvik Coromant CTGPR 12 3B T-Max™ S shank tool for turning
Next
Sandvik Coromant CTGPR 1010E 09 T-Max™ S shank tool for turning
Previous
![Sandvik Coromant CTGPR 12 3B T-Max™ S shank tool for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/42583578d/sandvik-coromant-ctgpr-12-3b-t-maxtm-s-shank-tool-for-turning.jpg)
![Sandvik Coromant CTGPR 1010E 09 T-Max™ S shank tool for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/42581f0a2/sandvik-coromant-ctgpr-1010e-09-t-maxtm-s-shank-tool-for-turning.jpg)
R 1 716,95
inc. vat
In stock
SKU
5726234
T-Max® S shank tool for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® S shank tool for turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
LF - Functional Length | 80mm |
TQ - Torque | 3.5Nm |
WT - Weight Of Item | 0.103kg |
OAL - Overall Length | 80mm |
OHX - Maximum Overhang | 17mm |
LSC - Clamping Length | 63mm |
KAPR - Tool Cutting Edge Angle | 91deg |
RMPX - Maximum Ramping Angle | 0deg |
BAWS - Workpiece Side Body Angle | 0deg |
BAMS - Machine Side Body Angle | 0deg |
WF - Functional Width | 16mm |
HF - Functional Height | 12mm |
GAMO - Orthogonal Rake Angle | 6deg |
LAMS - Inclination Angle | 0deg |
AN - Clearance Angle Major | 11deg |
IC - Inscribed Circle Diameter | 6.35mm |
RE - Corner Radius | 0.396875mm |
Insert Thickness | 3.175mm |
H - Shank Height | 12mm |
B - Shank Width | 12mm |
ORDCODE | CTGPR 1212F 11 |
ADINTMS - Adaptive Interface Machine Direction | M_VKT01_A1212_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-07-13 04:58:00.000 |
MTP - Clamping Type Code | C |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WISO_TP1103_4 |
Hand | R |

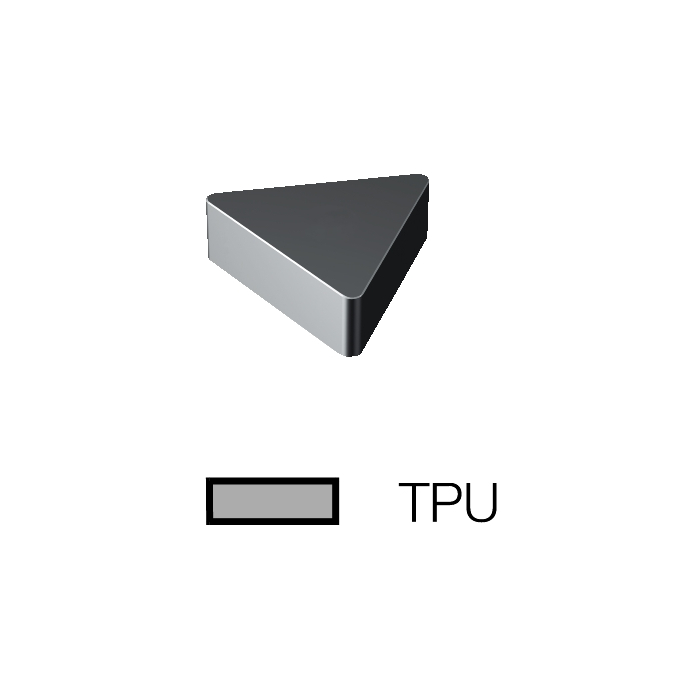

MIID - Master Insert Identification | TPUN 11 03 04 |
SC - Insert Shape Code | T |
SSC - Insert Seat Size Code | 11 |
CICT - Cutting Item Count | 1 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
