Sandvik Coromant CTTPL 2020K 16 T-Max™ S shank tool for turning

R 1 906,70 inc. vat
Out of stock
SKU
5726298
T-Max® S shank tool for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® S shank tool for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 125mm
TQ - Torque 5Nm
WT - Weight Of Item 0.403kg
OAL - Overall Length 125mm
OHX - Maximum Overhang 30.2mm
LSC - Clamping Length 94.8mm
KAPR - Tool Cutting Edge Angle 60deg
RMPX - Maximum Ramping Angle 30deg
BAWS - Workpiece Side Body Angle 0deg
BAMS - Machine Side Body Angle 0deg
WF - Functional Width 17mm
HF - Functional Height 20mm
GAMO - Orthogonal Rake Angle 6deg
LAMS - Inclination Angle 0deg
AN - Clearance Angle Major 11deg
IC - Inscribed Circle Diameter 9.525mm
RE - Corner Radius 0.79375mm
Insert Thickness 3.175mm
H - Shank Height 20mm
B - Shank Width 20mm
ORDCODE CTTPL 2020K 16
ADINTMS - Adaptive Interface Machine Direction M_VKT01_A2020_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 1
CHANGEDATE 2022-04-06 23:34:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WISO_TP1603_2
Hand L

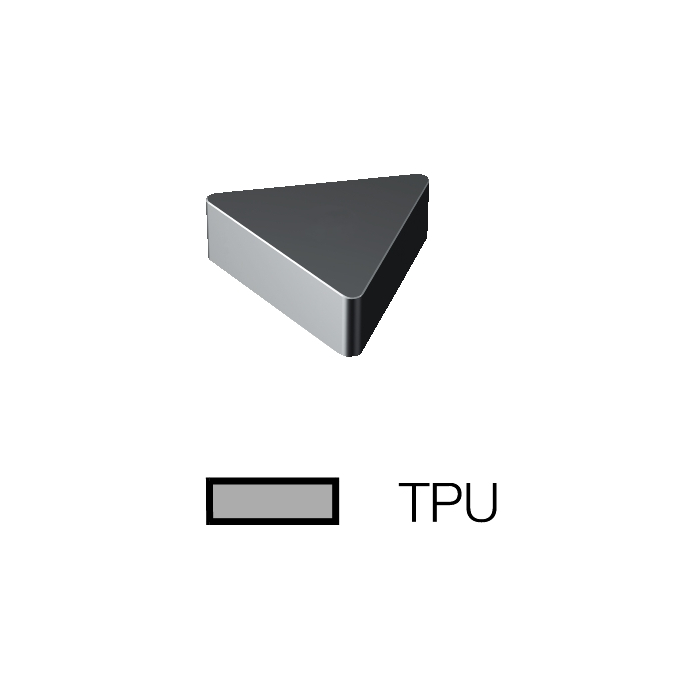

MIID - Master Insert Identification TPUN 16 03 08
SC - Insert Shape Code T
SSC - Insert Seat Size Code 16
CICT - Cutting Item Count 1
DPC - Damping Property False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
