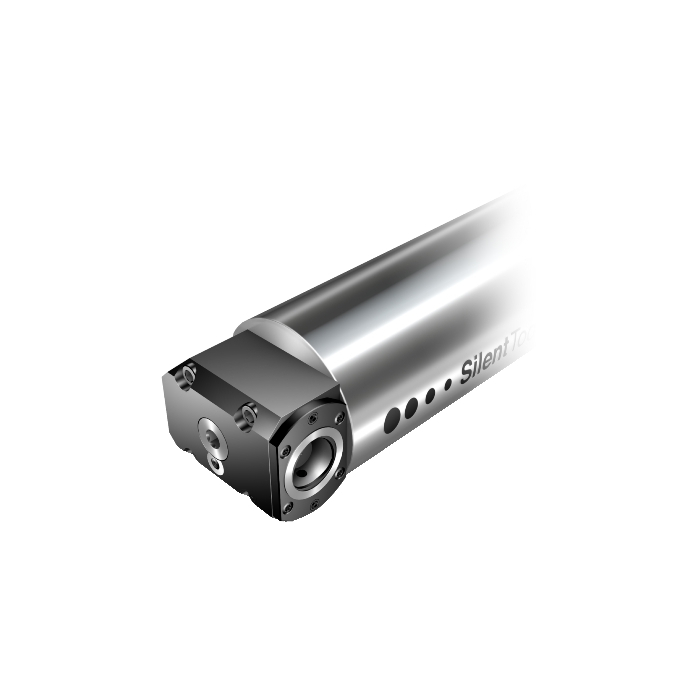

Sandvik Coromant CU-3C1001500-C4 Cylindrical shank to Coromant Capto™ damped adaptor
R 182 805,15
inc. vat
Out of stock
SKU
5856087
Cylindrical shank to Coromant Capto® damped adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Cylindrical shank to Coromant Capto® damped adaptor
| CP - Coolant Pressure | 7000000Pa |
|---|---|
| DFC - Functional Diameter | 28mm |
| DCON - Connection Diameter | 40mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 1520mm |
| BD - Body Diameter | 100mm |
| LB - Body Length | 1544mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 50Nm |
| WT - Weight Of Item | 90kg |
| OAL - Overall Length | 1544mm |
| OHX - Maximum Overhang | 973mm |
| LSC - Clamping Length | 1147mm |
| BAWS - Workpiece Side Body Angle | 90deg |
| OHN - Minimum Overhang | 373mm |
| WF - Functional Width | 41mm |
| HF - Functional Height | 0mm |
| LPR - Protruding Length | 1544mm |
| ORDCODE | CU-3C1001500-C4 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLR_H1000_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CCS02_C0400_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-05-23 16:13:00.000 |
| STDNO - Standard Number | ISO26623-2 |
| Hand | N |
| CNT - Coolant Entry Thread Size | G 3/4-14 |
| DPC - Damping Property | True |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
| LOCAP - Location Aid Property | False |
