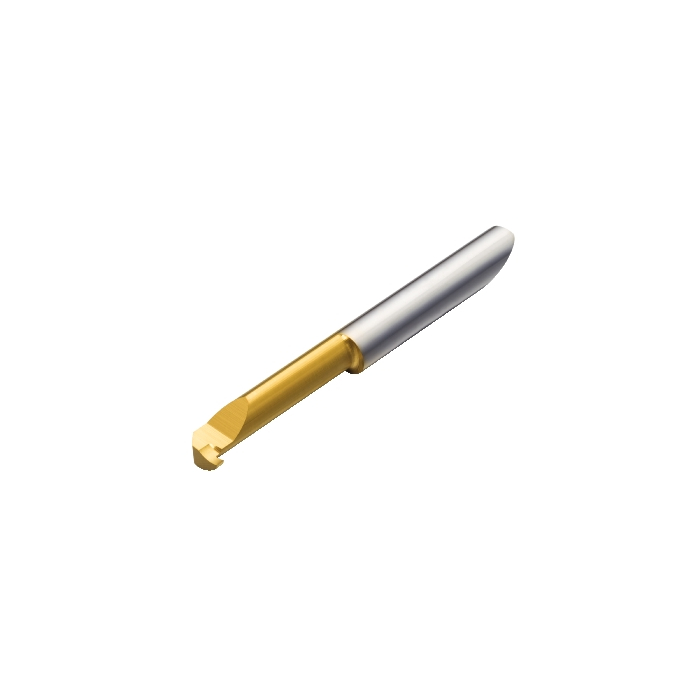

Sandvik Coromant CXS-04G050-2009L 1025 CoroTurn™ XS solid carbide tool for grooving
R 713,00
inc. vat
Out of stock
SKU
6765389
CoroTurn® XS solid carbide tool for grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® XS solid carbide tool for grooving
| DCON - Connection Diameter | 4mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 26.25mm |
| WT - Weight Of Item | 0.013kg |
| OAL - Overall Length | 27.98mm |
| OHX - Maximum Overhang | 12mm |
| LSC - Clamping Length | 14.25mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| DMIN - Minimum Bore Diameter | 2mm |
| BAWS - Workpiece Side Body Angle | 90deg |
| WF - Functional Width | 1.95mm |
| HF - Functional Height | 0mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| LU - Usable Length | 9mm |
| CW - Cutting Width | 0.5mm |
| CWTOLL - Cutting Width Lower Tolerance | 0mm |
| CWTOLU - Cutting Width Upper Tolerance | 0.05mm |
| CDX - Cutting Depth Maximum | 0.4mm |
| WB - Body Width | 1.15mm |
| CHWL - Chamfer Width Left Hand | 0.04mm |
| CHWR - Chamfer Width Right Hand | 0.04mm |
| PSIRL - Major Left Hand Cutting Edge Angle | 0deg |
| PSIRR - Major Right Hand Cutting Edge Angle | 0deg |
| ORDCODE | CXS-04G050-2009L 1025 |
| ADINTMS - Adaptive Interface Machine Direction | M_SIMA_F4000_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2021-12-21 11:13:00.000 |
| Hand | L |
| Grade | 1025 |
| COATING | PVD TiAlN+TiN |
| SUBSTRATE | HC |
| CEDC - Cutting Edge Count | 1 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
