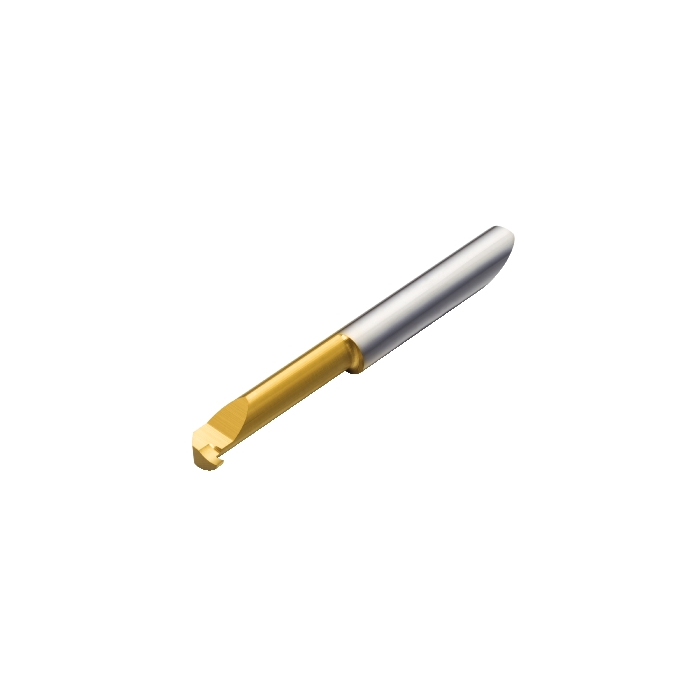

Sandvik Coromant CXS-04G078-4215L 1025 CoroTurn™ XS solid carbide tool for grooving

Name: Sandvik Coromant CXS-04G078-4215L 1025 CoroTurn™ XS solid carbide tool for grooving
SKU: 5726570
Price: 718.75 ZAR
Availability: InStock

Be the first to review this product

R 718,75 inc. vat

In stock

SKU

5726570

CoroTurn® XS solid carbide tool for grooving

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroTurn® XS solid carbide tool for grooving

More Information

More Information
DCON - Connection Diameter	4mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	32.25mm
WT - Weight Of Item	0.012kg
OAL - Overall Length	33.98mm
OHX - Maximum Overhang	18mm
LSC - Clamping Length	14.25mm
KAPR - Tool Cutting Edge Angle	90deg
DMIN - Minimum Bore Diameter	4.2mm
BAWS - Workpiece Side Body Angle	90deg
WF - Functional Width	1.95mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
LU - Usable Length	15mm
CW - Cutting Width	0.78mm
CWTOLL - Cutting Width Lower Tolerance	0mm
CWTOLU - Cutting Width Upper Tolerance	0.05mm
CDX - Cutting Depth Maximum	0.8mm
WB - Body Width	2.95mm
CHWL - Chamfer Width Left Hand	0.04mm
CHWR - Chamfer Width Right Hand	0.04mm
PSIRL - Major Left Hand Cutting Edge Angle	0deg
PSIRR - Major Right Hand Cutting Edge Angle	0deg
ORDCODE	CXS-04G078-4215L 1025
ADINTMS - Adaptive Interface Machine Direction	M_SIMA_F4000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-03-07 14:05:00.000
Hand	L
Grade	1025
COATING	PVD TiAlN+TiN
SUBSTRATE	HC
CEDC - Cutting Edge Count	1
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
