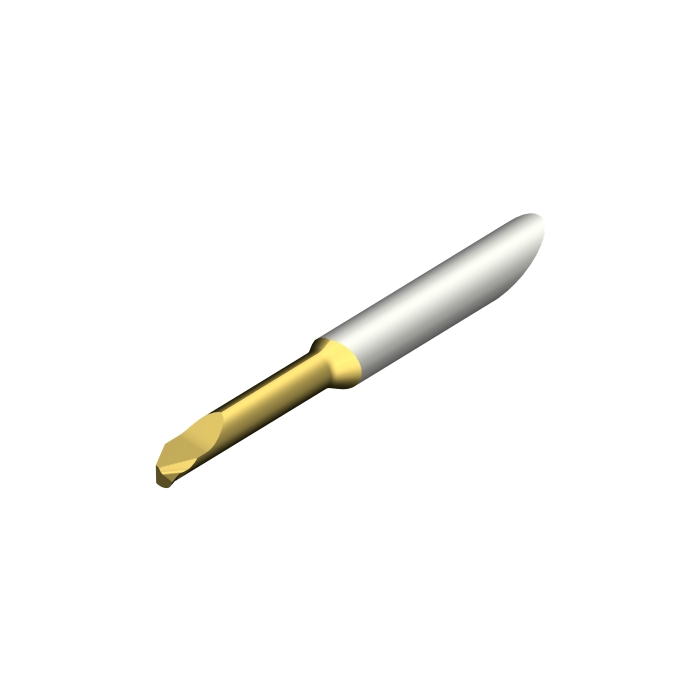

Sandvik Coromant CXS-04T098-05-3215R 1025 CoroTurn™ XS solid carbide tool for turning
R 625,60
inc. vat
In stock
SKU
5726441
CoroTurn® XS solid carbide tool for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® XS solid carbide tool for turning
| DCON - Connection Diameter | 4mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 32.25mm |
| WT - Weight Of Item | 0.005kg |
| OAL - Overall Length | 35.71mm |
| OHX - Maximum Overhang | 18mm |
| LSC - Clamping Length | 14.25mm |
| KAPR - Tool Cutting Edge Angle | 98deg |
| RMPX - Maximum Ramping Angle | 17deg |
| DMIN - Minimum Bore Diameter | 3.2mm |
| WF - Functional Width | 1.45mm |
| HF - Functional Height | 0mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| RE - Corner Radius | 0.05mm |
| LU - Usable Length | 15mm |
| APMX - Depth Of Cut Maximum | 0.2mm |
| WB - Body Width | 2.55mm |
| ORDCODE | CXS-04T098-05-3215R 1025 |
| ADINTMS - Adaptive Interface Machine Direction | M_SIMA_F4000_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2021-11-26 12:04:00.000 |
| Hand | R |
| Grade | 1025 |
| COATING | PVD TiAlN+TiN |
| SUBSTRATE | HC |
| CEDC - Cutting Edge Count | 1 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
