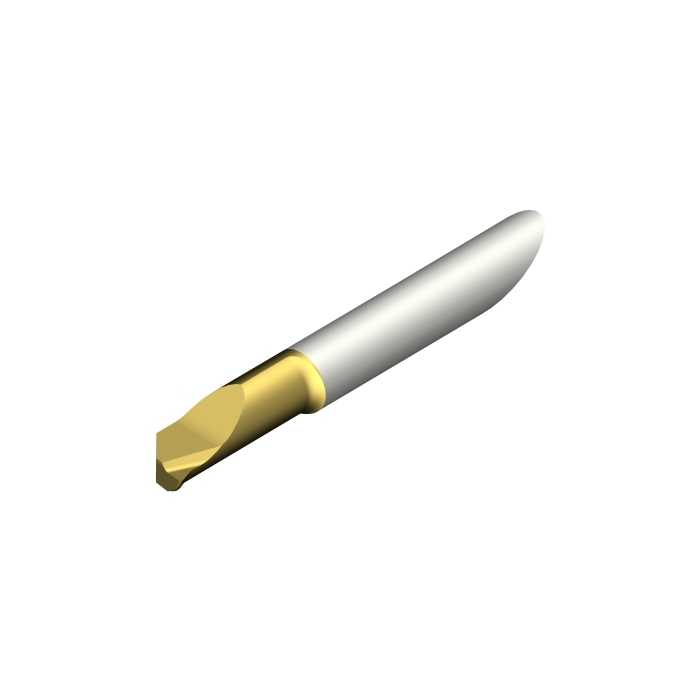

Sandvik Coromant CXS-04T098-15-4210R 1025 CoroTurn™ XS solid carbide tool for turning

Name: Sandvik Coromant CXS-04T098-15-4210R 1025 CoroTurn™ XS solid carbide tool for turning
SKU: 5726374
Price: 594.55 ZAR
Availability: InStock

Be the first to review this product

R 594,55 inc. vat

In stock

SKU

5726374

CoroTurn® XS solid carbide tool for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroTurn® XS solid carbide tool for turning

More Information

More Information
DCON - Connection Diameter	4mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	27.25mm
WT - Weight Of Item	0.006kg
OAL - Overall Length	30.71mm
OHX - Maximum Overhang	13mm
LSC - Clamping Length	14.25mm
KAPR - Tool Cutting Edge Angle	98deg
RMPX - Maximum Ramping Angle	17deg
DMIN - Minimum Bore Diameter	4.2mm
WF - Functional Width	1.95mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
RE - Corner Radius	0.15mm
LU - Usable Length	10mm
APMX - Depth Of Cut Maximum	0.3mm
WB - Body Width	3.45mm
ORDCODE	CXS-04T098-15-4210R 1025
ADINTMS - Adaptive Interface Machine Direction	M_SIMA_F4000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-06-14 13:26:00.000
Hand	R
Grade	1025
COATING	PVD TiAlN+TiN
SUBSTRATE	HC
CEDC - Cutting Edge Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
