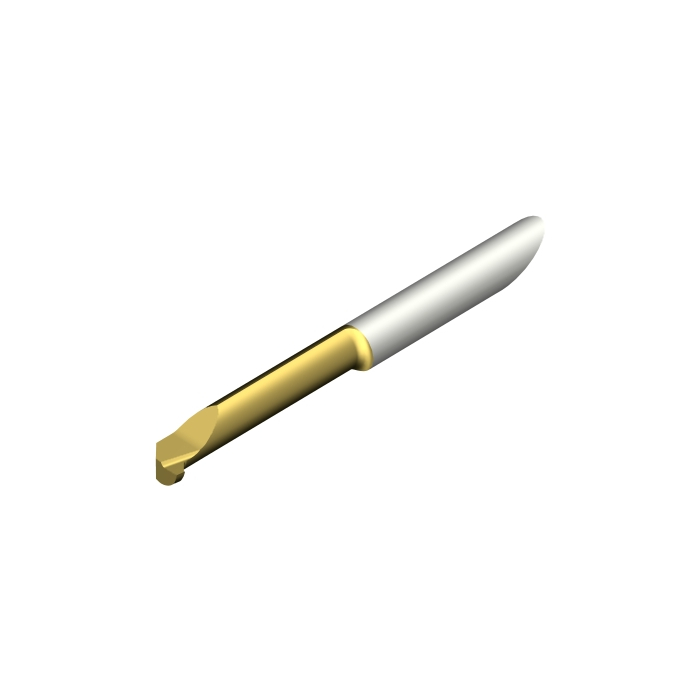

Sandvik Coromant CXS-05GX100-5225R 1025 CoroTurn™ XS solid carbide tool for pre-parting

Name: Sandvik Coromant CXS-05GX100-5225R 1025 CoroTurn™ XS solid carbide tool for pre-parting
SKU: 5726505
Price: 794.65 ZAR
Availability: InStock

Be the first to review this product

R 794,65 inc. vat

In stock

SKU

5726505

CoroTurn® XS solid carbide tool for pre-parting

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroTurn® XS solid carbide tool for pre-parting

More Information

More Information
DCON - Connection Diameter	5mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	47.25mm
WT - Weight Of Item	0.014kg
OAL - Overall Length	49.42mm
OHX - Maximum Overhang	28mm
LSC - Clamping Length	19.25mm
KAPR - Tool Cutting Edge Angle	90deg
DMIN - Minimum Bore Diameter	5.2mm
BAWS - Workpiece Side Body Angle	90deg
WF - Functional Width	2.45mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
LU - Usable Length	25mm
CW - Cutting Width	1mm
CWTOLL - Cutting Width Lower Tolerance	0mm
CWTOLU - Cutting Width Upper Tolerance	0.05mm
CDX - Cutting Depth Maximum	0.7mm
WB - Body Width	3.75mm
CHWL - Chamfer Width Left Hand	0.04mm
CHWR - Chamfer Width Right Hand	0.04mm
PSIRL - Major Left Hand Cutting Edge Angle	0deg
PSIRR - Major Right Hand Cutting Edge Angle	0deg
ORDCODE	CXS-05GX100-5225R 1025
ADINTMS - Adaptive Interface Machine Direction	M_SIMA_F5000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2021-11-16 06:19:00.000
Hand	R
Grade	1025
COATING	PVD TiAlN+TiN
SUBSTRATE	HC
CEDC - Cutting Edge Count	1
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
