R 669,30
inc. vat
In stock
SKU
5726482

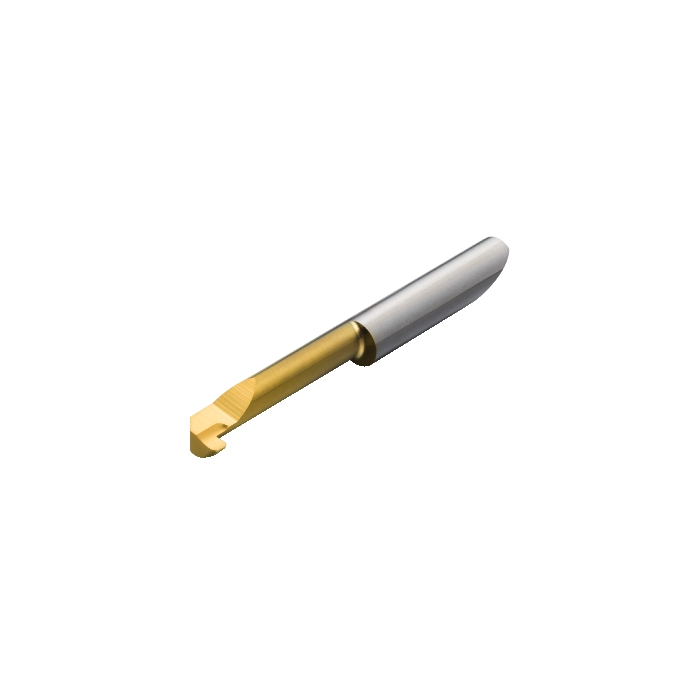

CoroTurn® XS solid carbide tool for profiling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® XS solid carbide tool for profiling
DCON - Connection Diameter | 5mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 42.25mm |
WT - Weight Of Item | 0.018kg |
OAL - Overall Length | 44.42mm |
OHX - Maximum Overhang | 23mm |
LSC - Clamping Length | 19.25mm |
DMIN - Minimum Bore Diameter | 5.2mm |
BAWS - Workpiece Side Body Angle | 90deg |
WF - Functional Width | 2.45mm |
HF - Functional Height | 0mm |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 0deg |
RE - Corner Radius | 0.81mm |
LU - Usable Length | 20mm |
CW - Cutting Width | 1.63mm |
CWTOLL - Cutting Width Lower Tolerance | 0mm |
CWTOLU - Cutting Width Upper Tolerance | 0.05mm |
CDX - Cutting Depth Maximum | 1mm |
WB - Body Width | 3.75mm |
PSIRL - Major Left Hand Cutting Edge Angle | 0deg |
PSIRR - Major Right Hand Cutting Edge Angle | 0deg |
RETOLL - Corner Radius Lower Tolerance | -0.02mm |
RETOLU - Corner Radius Upper Tolerance | 0.02mm |
ORDCODE | CXS-05R081-5220R 1025 |
ADINTMS - Adaptive Interface Machine Direction | M_SIMA_F5000_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-03-07 14:04:00.000 |
Hand | R |
Grade | 1025 |
COATING | PVD TiAlN+TiN |
SUBSTRATE | HC |
CEDC - Cutting Edge Count | 1 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
