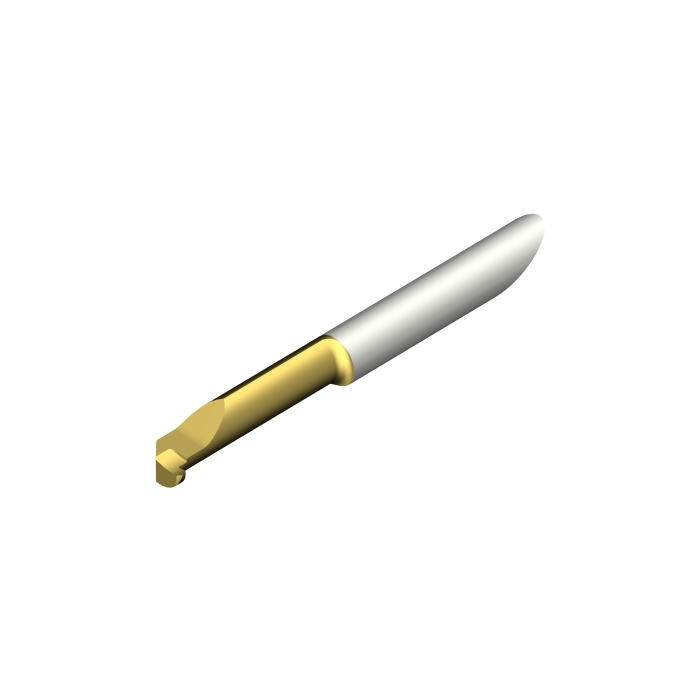

Sandvik Coromant CXS-05R100-5220R 1025 CoroTurn™ XS solid carbide tool for profiling

Name: Sandvik Coromant CXS-05R100-5220R 1025 CoroTurn™ XS solid carbide tool for profiling
SKU: 5726434
Price: 669.30 ZAR
Availability: InStock

Be the first to review this product

R 669,30 inc. vat

In stock

SKU

5726434

CoroTurn® XS solid carbide tool for profiling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroTurn® XS solid carbide tool for profiling

More Information

More Information
DCON - Connection Diameter	5mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	42.25mm
WT - Weight Of Item	0.013kg
OAL - Overall Length	44.42mm
OHX - Maximum Overhang	23mm
LSC - Clamping Length	19.25mm
DMIN - Minimum Bore Diameter	5.2mm
BAWS - Workpiece Side Body Angle	90deg
WF - Functional Width	2.45mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
RE - Corner Radius	0.5mm
LU - Usable Length	20mm
CW - Cutting Width	1mm
CWTOLL - Cutting Width Lower Tolerance	0mm
CWTOLU - Cutting Width Upper Tolerance	0.05mm
CDX - Cutting Depth Maximum	1mm
WB - Body Width	3.75mm
PSIRL - Major Left Hand Cutting Edge Angle	0deg
PSIRR - Major Right Hand Cutting Edge Angle	0deg
RETOLL - Corner Radius Lower Tolerance	-0.02mm
RETOLU - Corner Radius Upper Tolerance	0.02mm
ORDCODE	CXS-05R100-5220R 1025
ADINTMS - Adaptive Interface Machine Direction	M_SIMA_F5000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2021-12-25 09:20:00.000
Hand	R
Grade	1025
COATING	PVD TiAlN+TiN
SUBSTRATE	HC
CEDC - Cutting Edge Count	1
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
