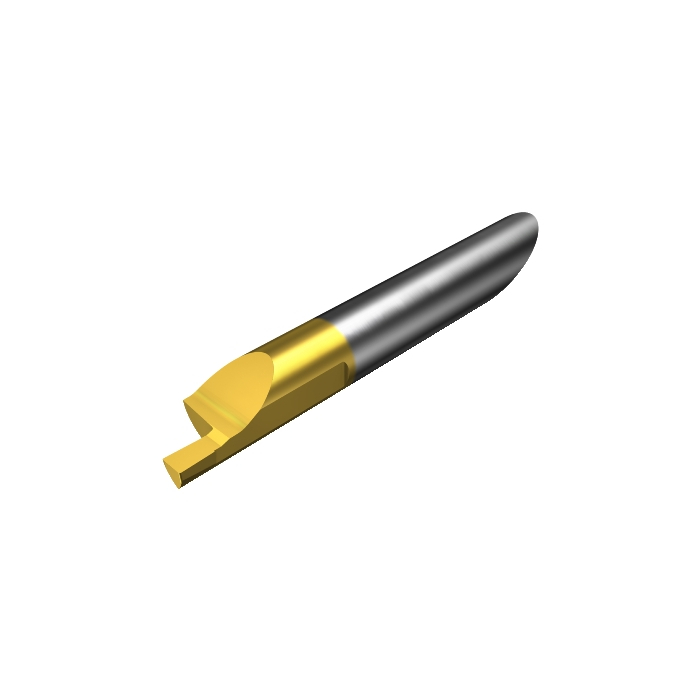

Sandvik Coromant CXS-06F200-6215BR 1025 CoroTurn™ XS solid carbide tool for face grooving

Name: Sandvik Coromant CXS-06F200-6215BR 1025 CoroTurn™ XS solid carbide tool for face grooving
SKU: 6765552
Price: 761.30 ZAR
Availability: InStock

Be the first to review this product

R 761,30 inc. vat

In stock

SKU

6765552

CoroTurn® XS solid carbide tool for face grooving

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroTurn® XS solid carbide tool for face grooving

More Information

More Information
DCON - Connection Diameter	6mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	37.3mm
WT - Weight Of Item	0.022kg
OAL - Overall Length	42.5mm
OHX - Maximum Overhang	18mm
LSC - Clamping Length	19.25mm
KAPR - Tool Cutting Edge Angle	90deg
BAWS - Workpiece Side Body Angle	0deg
WF - Functional Width	2.95mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
CW - Cutting Width	2mm
CWTOLL - Cutting Width Lower Tolerance	0mm
CWTOLU - Cutting Width Upper Tolerance	0.05mm
REL - Corner Radius Left	0.15mm
RER - Corner Radius Right	0.15mm
CDX - Cutting Depth Maximum	4mm
RETOLL - Corner Radius Lower Tolerance	-0.02mm
RETOLU - Corner Radius Upper Tolerance	0.02mm
DAXN - Minimum Axial Groove Outside Diameter	6.2mm
ORDCODE	CXS-06F200-6215BR 1025
ADINTMS - Adaptive Interface Machine Direction	M_SIMA_F6000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-09-14 14:05:00.000
Hand	R
Grade	1025
COATING	PVD TiAlN+TiN
SUBSTRATE	HC
CEDC - Cutting Edge Count	1
AXGSUP - Axial Groove Support Direction	2
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
