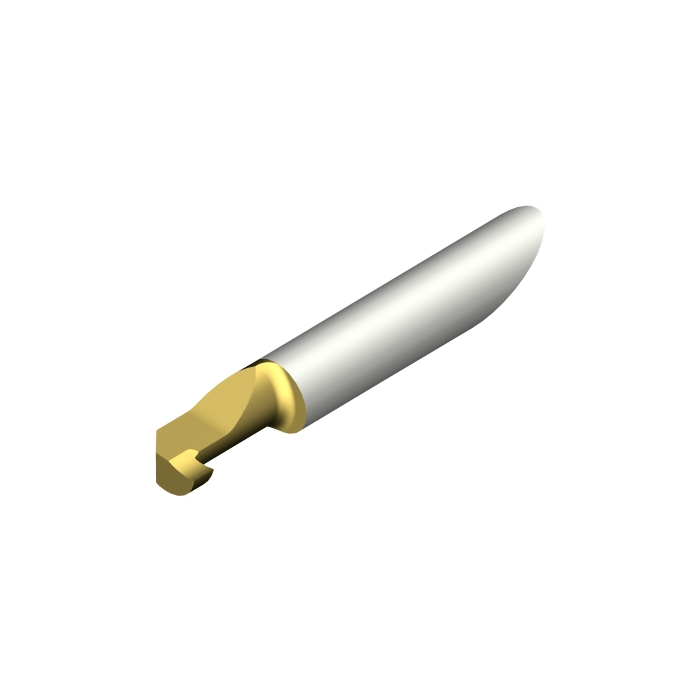

Sandvik Coromant CXS-06G198-6210R 1025 CoroTurn™ XS solid carbide tool for grooving

R 594,55 inc. vat
In stock
SKU
5726703
CoroTurn® XS solid carbide tool for grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® XS solid carbide tool for grooving
More Information
DCON - Connection Diameter 6mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 32.25mm
WT - Weight Of Item 14g
OAL - Overall Length 34.85mm
OHX - Maximum Overhang 13mm
LSC - Clamping Length 19.25mm
KAPR - Tool Cutting Edge Angle 90deg
DMIN - Minimum Bore Diameter 6.2mm
BAWS - Workpiece Side Body Angle 90deg
WF - Functional Width 2.95mm
HF - Functional Height 0mm
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle 0deg
LU - Usable Length 10mm
CW - Cutting Width 1.98mm
CWTOLL - Cutting Width Lower Tolerance 0mm
CWTOLU - Cutting Width Upper Tolerance 0.05mm
CDX - Cutting Depth Maximum 1.8mm
WB - Body Width 3.95mm
CHWL - Chamfer Width Left Hand 0.04mm
CHWR - Chamfer Width Right Hand 0.04mm
PSIRL - Major Left Hand Cutting Edge Angle 0deg
PSIRR - Major Right Hand Cutting Edge Angle 0deg
ORDCODE CXS-06G198-6210R 1025
ADINTMS - Adaptive Interface Machine Direction M_SIMA_F6000_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2021-11-22 11:49:00.000
Hand R
Grade 1025
COATING PVD TiAlN+TiN
SUBSTRATE HC
CEDC - Cutting Edge Count 1
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
