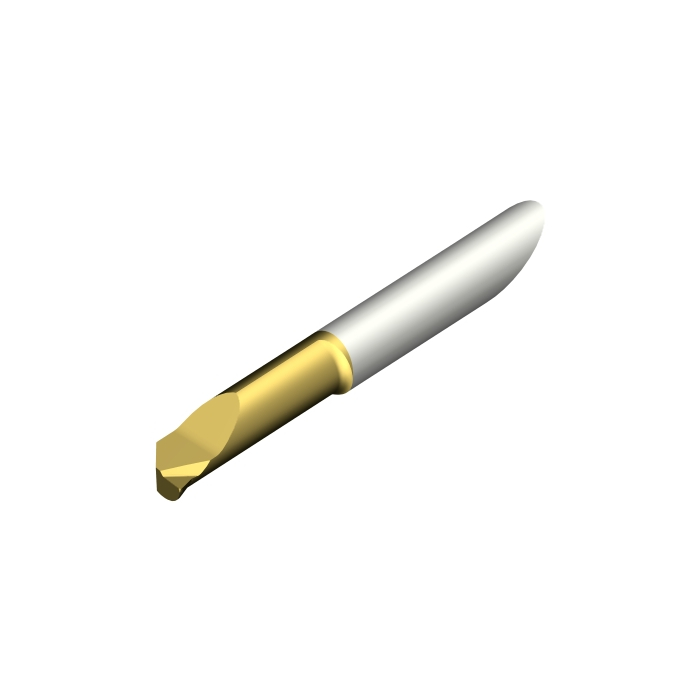

Sandvik Coromant CXS-06T098-20-6225L 1025 CoroTurn™ XS solid carbide tool for turning
Next
Sandvik Coromant CXS-06T098-20-6220R H10F CoroTurn™ XS solid carbide tool for turning
Previous
![Sandvik Coromant CXS-06T098-20-6225L 1025 CoroTurn™ XS solid carbide tool for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/428977a77/sandvik-coromant-cxs-06t098-20-6225l-1025-coroturntm-xs-solid-carbide-tool-for-turning.jpg)
![Sandvik Coromant CXS-06T098-20-6220R H10F CoroTurn™ XS solid carbide tool for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/42891ba3c/sandvik-coromant-cxs-06t098-20-6220r-h10f-coroturntm-xs-solid-carbide-tool-for-turning.jpg)
R 625,60
inc. vat
In stock
SKU
5726665
CoroTurn® XS solid carbide tool for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® XS solid carbide tool for turning
DCON - Connection Diameter | 6mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 42.25mm |
WT - Weight Of Item | 20g |
OAL - Overall Length | 47.45mm |
OHX - Maximum Overhang | 23mm |
LSC - Clamping Length | 19.25mm |
KAPR - Tool Cutting Edge Angle | 98deg |
RMPX - Maximum Ramping Angle | 17deg |
DMIN - Minimum Bore Diameter | 6.2mm |
WF - Functional Width | 2.95mm |
HF - Functional Height | 0mm |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 0deg |
RE - Corner Radius | 0.2mm |
LU - Usable Length | 20mm |
APMX - Depth Of Cut Maximum | 0.5mm |
WB - Body Width | 5.25mm |
ORDCODE | CXS-06T098-20-6220R 1025 |
ADINTMS - Adaptive Interface Machine Direction | M_SIMA_F6000_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-02-15 08:04:00.000 |
Hand | R |
Grade | 1025 |
COATING | PVD TiAlN+TiN |
SUBSTRATE | HC |
CEDC - Cutting Edge Count | 1 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
