Sandvik Coromant CXS-06T098A20-6230L 1025 CoroTurn™ XS solid carbide tool for turning
Next
Sandvik Coromant CXS-06T098A20-6220L 1025 CoroTurn™ XS solid carbide tool for turning
Previous
![Sandvik Coromant CXS-06T098A20-6230L 1025 CoroTurn™ XS solid carbide tool for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/5992004a9/sandvik-coromant-cxs-06t098a20-6230l-1025-coroturntm-xs-solid-carbide-tool-for-turning.jpg)
![Sandvik Coromant CXS-06T098A20-6220L 1025 CoroTurn™ XS solid carbide tool for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/59918a3db/sandvik-coromant-cxs-06t098a20-6220l-1025-coroturntm-xs-solid-carbide-tool-for-turning.jpg)
R 746,35
inc. vat
Out of stock
SKU
6765374

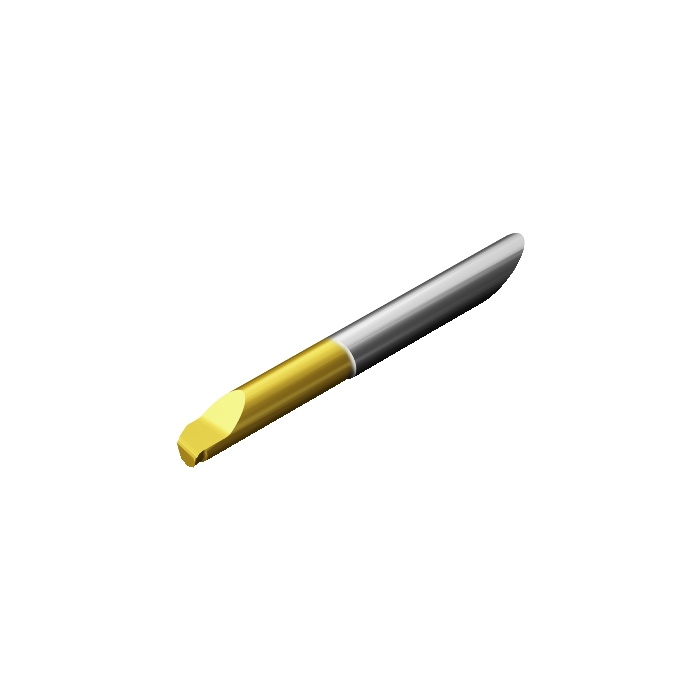

CoroTurn® XS solid carbide tool for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® XS solid carbide tool for turning
DCON - Connection Diameter | 6mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 47.25mm |
WT - Weight Of Item | 26.5g |
OAL - Overall Length | 52.45mm |
OHX - Maximum Overhang | 28mm |
LSC - Clamping Length | 19.25mm |
KAPR - Tool Cutting Edge Angle | 98deg |
RMPX - Maximum Ramping Angle | 0deg |
DMIN - Minimum Bore Diameter | 6.2mm |
WF - Functional Width | 2.95mm |
HF - Functional Height | 0mm |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 0deg |
RE - Corner Radius | 0.2mm |
LU - Usable Length | 25.4mm |
APMX - Depth Of Cut Maximum | 0.75mm |
WB - Body Width | 5.7mm |
ORDCODE | CXS-06T098A20-6225L 1025 |
ADINTMS - Adaptive Interface Machine Direction | M_SIMA_F6000_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-03-07 09:04:00.000 |
Hand | L |
Grade | 1025 |
COATING | PVD TiAlN+TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | A |
CEDC - Cutting Edge Count | 1 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
