R 717,60
inc. vat
In stock
SKU
5726635

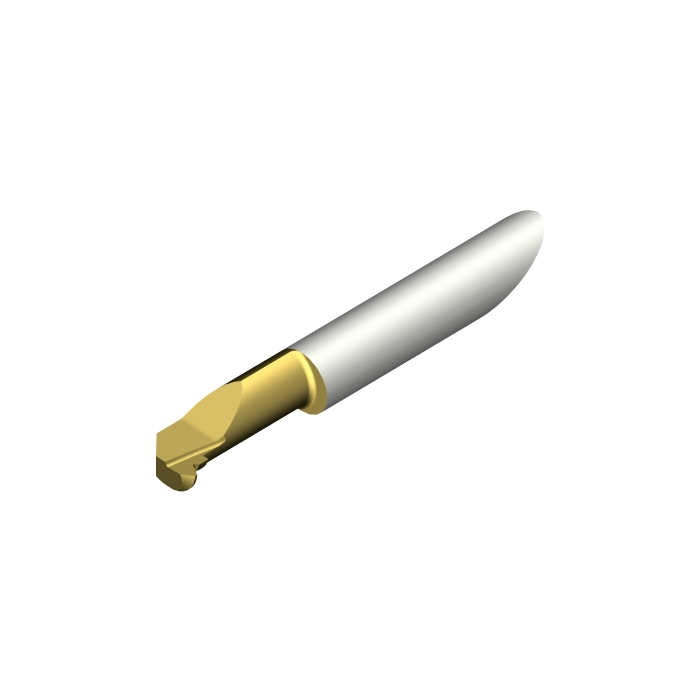

CoroTurn® XS solid carbide tool for thread turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® XS solid carbide tool for thread turning
DCON - Connection Diameter | 6mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 37.3mm |
WT - Weight Of Item | 0.016kg |
OAL - Overall Length | 41.2mm |
OHX - Maximum Overhang | 17.1mm |
LSC - Clamping Length | 19.25mm |
DMIN - Minimum Bore Diameter | 6.2mm |
WF - Functional Width | 2.95mm |
HF - Functional Height | 0mm |
LPR - Protruding Length | 38.2mm |
LU - Usable Length | 15mm |
CDX - Cutting Depth Maximum | 0.95mm |
HA - Theoretical Thread Height | 1.83mm |
HB - Thread Height Difference | 0.18mm |
CF - Spot Chamfer | 0.21mm |
WB - Body Width | 4.3mm |
TP - Thread Pitch | 1.75mm |
ORDCODE | CXS-06TH175MM-6215R 1025 |
ADINTMS - Adaptive Interface Machine Direction | M_SIMA_F6000_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2021-11-16 07:18:00.000 |
STDNO - Standard Number | ISO 956-1998 |
Hand | R |
Grade | 1025 |
COATING | PVD TiAlN+TiN |
SUBSTRATE | HC |
THFT - Thread Form Type | M60 |
TPT - Thread Profile Type | F |
TTP - Thread Type | INT |
TCTR - Thread Tolerance Class | IT 6 |
CEDC - Cutting Edge Count | 1 |
NT - Tooth Count | 1 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
