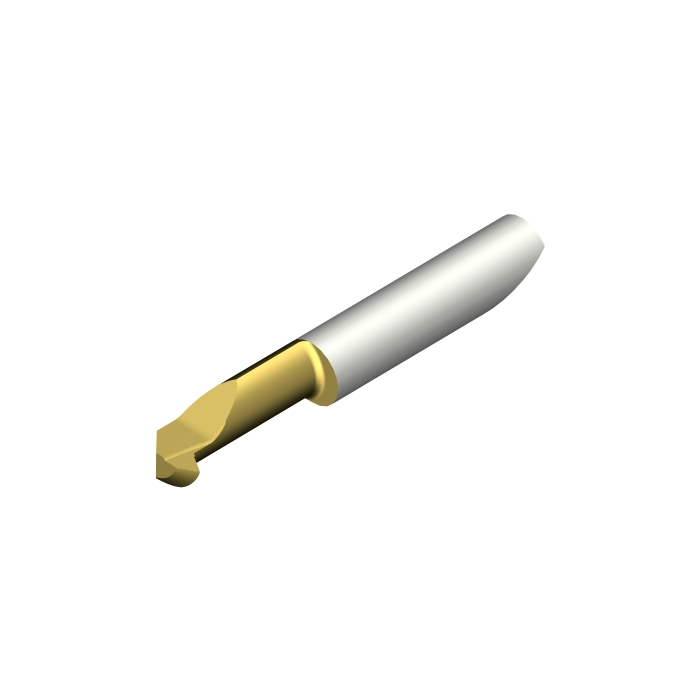

Sandvik Coromant CXS-06TH18NT-6215L 1025 CoroTurn™ XS solid carbide tool for thread turning
Next
Sandvik Coromant CXS-06TH180UN-6215R 1025 CoroTurn™ XS solid carbide tool for thread turning
Previous
![Sandvik Coromant CXS-06TH18NT-6215L 1025 CoroTurn™ XS solid carbide tool for thread turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/42875d255/sandvik-coromant-cxs-06th18nt-6215l-1025-coroturntm-xs-solid-carbide-tool-for-thread-turning.jpg)
![Sandvik Coromant CXS-06TH180UN-6215R 1025 CoroTurn™ XS solid carbide tool for thread turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/428780c68/sandvik-coromant-cxs-06th180un-6215r-1025-coroturntm-xs-solid-carbide-tool-for-thread-turning.jpg)
R 652,05
inc. vat
In stock
SKU
5726640
CoroTurn® XS solid carbide tool for thread turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® XS solid carbide tool for thread turning
DCON - Connection Diameter | 6mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 37.3mm |
WT - Weight Of Item | 16g |
OAL - Overall Length | 41.3mm |
OHX - Maximum Overhang | 17.2mm |
LSC - Clamping Length | 19.25mm |
DMIN - Minimum Bore Diameter | 6.2mm |
WF - Functional Width | 2.95mm |
HF - Functional Height | 0mm |
RE - Corner Radius | 0.1mm |
LPR - Protruding Length | 38.3mm |
LU - Usable Length | 15mm |
CDX - Cutting Depth Maximum | 1.35mm |
HA - Theoretical Thread Height | 1.64mm |
HB - Thread Height Difference | 0.04mm |
WB - Body Width | 3.95mm |
TPI - Threads Per Inch | 18 |
ORDCODE | CXS-06TH18NT-6215R 1025 |
ADINTMS - Adaptive Interface Machine Direction | M_SIMA_F6000_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2021-11-17 04:49:00.000 |
STDNO - Standard Number | ANSI B.1.20.1-1983 |
Hand | R |
Grade | 1025 |
COATING | PVD TiAlN+TiN |
SUBSTRATE | HC |
THFT - Thread Form Type | NPT60 |
TPT - Thread Profile Type | F |
TTP - Thread Type | INT |
CEDC - Cutting Edge Count | 1 |
NT - Tooth Count | 1 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
