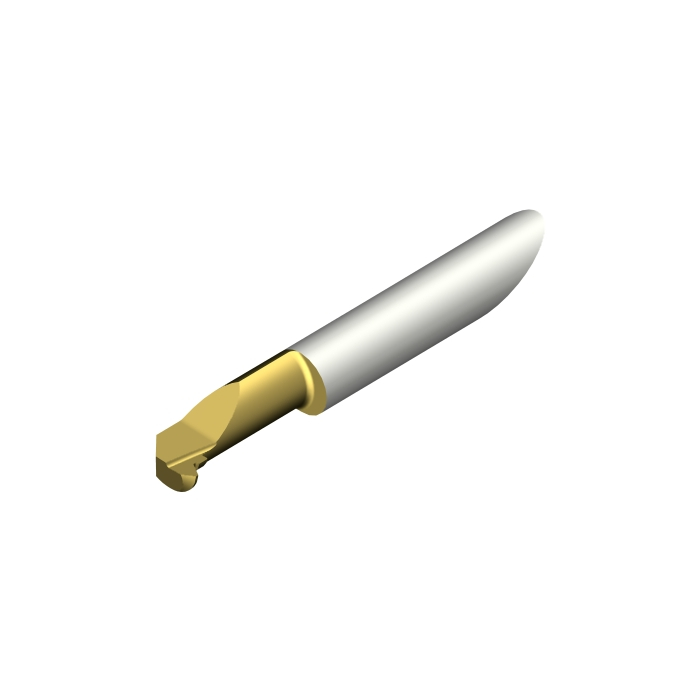

Sandvik Coromant CXS-06TH200MM-6215R 1025 CoroTurn™ XS solid carbide tool for thread turning

Name: Sandvik Coromant CXS-06TH200MM-6215R 1025 CoroTurn™ XS solid carbide tool for thread turning
SKU: 5726658
Price: 717.60 ZAR
Availability: InStock

Be the first to review this product

R 717,60 inc. vat

In stock

SKU

5726658

CoroTurn® XS solid carbide tool for thread turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroTurn® XS solid carbide tool for thread turning

More Information

More Information
DCON - Connection Diameter	6mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	37.3mm
WT - Weight Of Item	0.016kg
OAL - Overall Length	41.3mm
OHX - Maximum Overhang	17mm
LSC - Clamping Length	19.25mm
DMIN - Minimum Bore Diameter	6.2mm
WF - Functional Width	2.95mm
HF - Functional Height	0mm
LPR - Protruding Length	38.3mm
LU - Usable Length	15mm
CDX - Cutting Depth Maximum	1.08mm
HA - Theoretical Thread Height	2.07mm
HB - Thread Height Difference	0.22mm
CF - Spot Chamfer	0.25mm
WB - Body Width	4.1mm
TP - Thread Pitch	2mm
ORDCODE	CXS-06TH200MM-6215R 1025
ADINTMS - Adaptive Interface Machine Direction	M_SIMA_F6000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2021-11-22 10:51:00.000
STDNO - Standard Number	ISO 956-1998
Hand	R
Grade	1025
COATING	PVD TiAlN+TiN
SUBSTRATE	HC
THFT - Thread Form Type	M60
TPT - Thread Profile Type	F
TTP - Thread Type	INT
TCTR - Thread Tolerance Class	IT 6
CEDC - Cutting Edge Count	1
NT - Tooth Count	1
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
