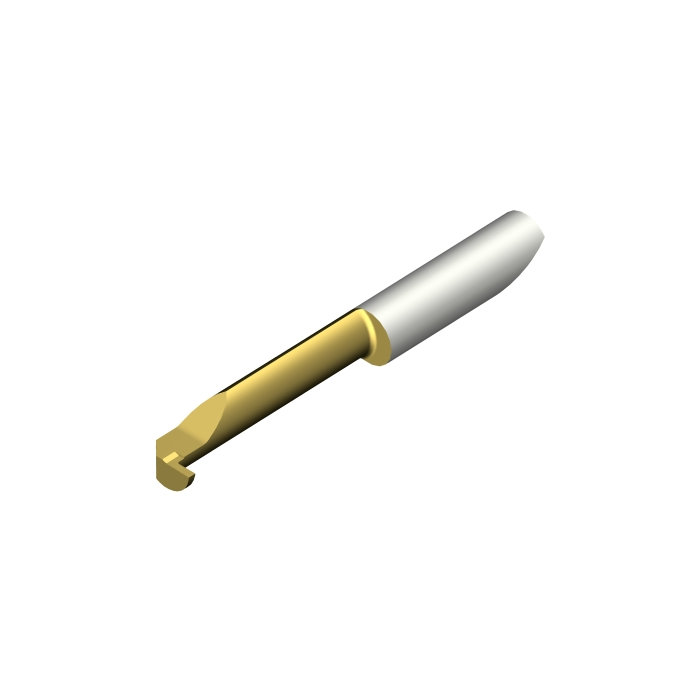

Sandvik Coromant CXS-07G100-7230R 1025 CoroTurn™ XS solid carbide tool for grooving

Name: Sandvik Coromant CXS-07G100-7230R 1025 CoroTurn™ XS solid carbide tool for grooving
SKU: 6765505
Price: 1012.00 ZAR
Availability: InStock

Be the first to review this product

R 1 012,00 inc. vat

In stock

SKU

6765505

CoroTurn® XS solid carbide tool for grooving

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroTurn® XS solid carbide tool for grooving

More Information

More Information
DCON - Connection Diameter	7mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	52.25mm
WT - Weight Of Item	0.026kg
OAL - Overall Length	55.28mm
OHX - Maximum Overhang	33mm
LSC - Clamping Length	19.25mm
KAPR - Tool Cutting Edge Angle	90deg
DMIN - Minimum Bore Diameter	7.2mm
BAWS - Workpiece Side Body Angle	90deg
WF - Functional Width	3.45mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
LU - Usable Length	30mm
CW - Cutting Width	1mm
CWTOLL - Cutting Width Lower Tolerance	0mm
CWTOLU - Cutting Width Upper Tolerance	0.05mm
CDX - Cutting Depth Maximum	2.5mm
WB - Body Width	4.25mm
CHWL - Chamfer Width Left Hand	0.04mm
CHWR - Chamfer Width Right Hand	0.04mm
PSIRL - Major Left Hand Cutting Edge Angle	0deg
PSIRR - Major Right Hand Cutting Edge Angle	0deg
ORDCODE	CXS-07G100-7230R 1025
ADINTMS - Adaptive Interface Machine Direction	M_SIMA_F7000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-02-28 08:27:00.000
Hand	R
Grade	1025
COATING	PVD TiAlN+TiN
SUBSTRATE	HC
CEDC - Cutting Edge Count	1
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
