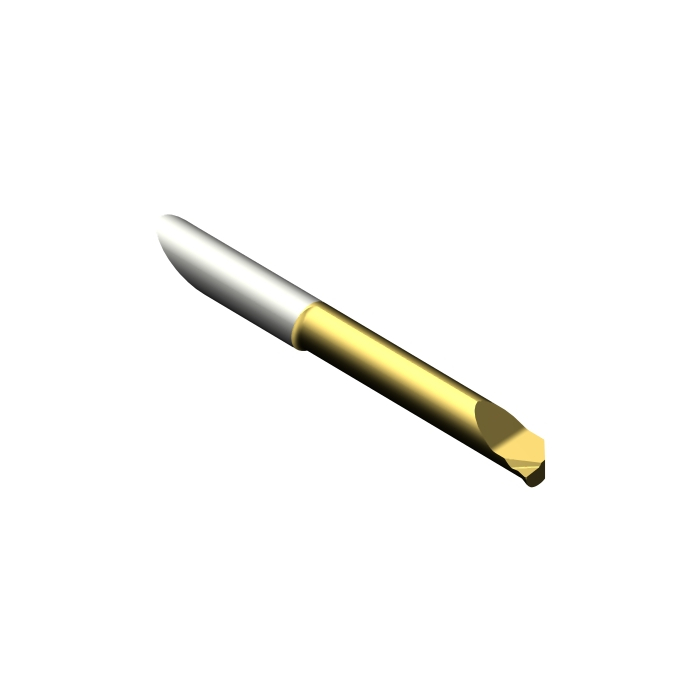

Sandvik Coromant CXS-07T098-20-7240L 1025 CoroTurn™ XS solid carbide tool for turning

Name: Sandvik Coromant CXS-07T098-20-7240L 1025 CoroTurn™ XS solid carbide tool for turning
SKU: 5726690
Price: 993.60 ZAR
Availability: InStock

Be the first to review this product

R 993,60 inc. vat

In stock

SKU

5726690

CoroTurn® XS solid carbide tool for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroTurn® XS solid carbide tool for turning

More Information

More Information
DCON - Connection Diameter	7mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	62.25mm
WT - Weight Of Item	39g
OAL - Overall Length	68.31mm
OHX - Maximum Overhang	43mm
LSC - Clamping Length	19.25mm
KAPR - Tool Cutting Edge Angle	98deg
RMPX - Maximum Ramping Angle	17deg
DMIN - Minimum Bore Diameter	7.2mm
WF - Functional Width	3.45mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
RE - Corner Radius	0.2mm
LU - Usable Length	40mm
APMX - Depth Of Cut Maximum	0.5mm
WB - Body Width	6.25mm
ORDCODE	CXS-07T098-20-7240L 1025
ADINTMS - Adaptive Interface Machine Direction	M_SIMA_F7000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2021-11-17 07:04:00.000
Hand	L
Grade	1025
COATING	PVD TiAlN+TiN
SUBSTRATE	HC
CEDC - Cutting Edge Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
