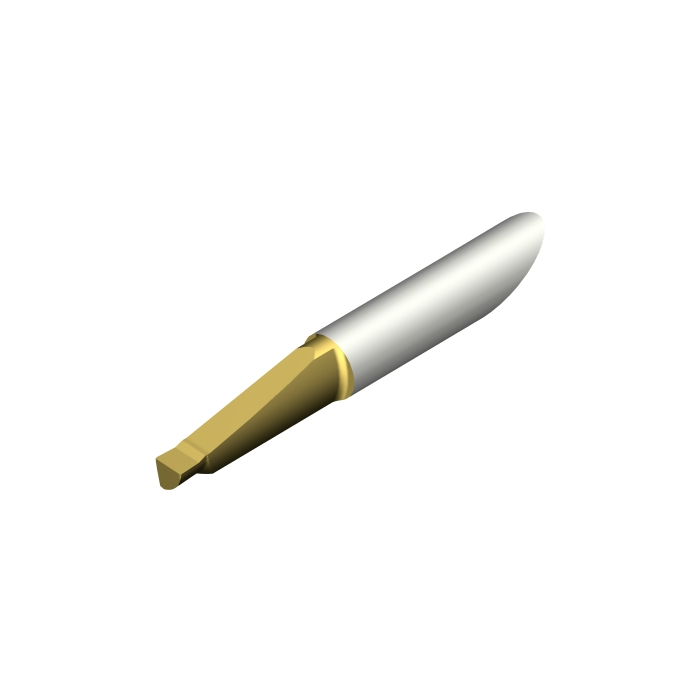

Sandvik Coromant CXS-10F500-10030AR 1025 CoroTurn™ XS solid carbide tool for face grooving
R 2 900,30
inc. vat
In stock
SKU
6365892
CoroTurn® XS solid carbide tool for face grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® XS solid carbide tool for face grooving
| DCON - Connection Diameter | 10mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 62.25mm |
| WT - Weight Of Item | 0.066kg |
| OAL - Overall Length | 70.91mm |
| OHX - Maximum Overhang | 38mm |
| LSC - Clamping Length | 24.25mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| BAWS - Workpiece Side Body Angle | 0deg |
| WF - Functional Width | 3.1mm |
| HF - Functional Height | 0mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| CW - Cutting Width | 5mm |
| CWTOLL - Cutting Width Lower Tolerance | 0mm |
| CWTOLU - Cutting Width Upper Tolerance | 0.05mm |
| REL - Corner Radius Left | 0.2mm |
| RER - Corner Radius Right | 0.2mm |
| CDX - Cutting Depth Maximum | 30mm |
| RETOLL - Corner Radius Lower Tolerance | -0.02mm |
| RETOLU - Corner Radius Upper Tolerance | 0.02mm |
| DAXN - Minimum Axial Groove Outside Diameter | 30mm |
| ORDCODE | CXS-10F500-10030AR 1025 |
| ADINTMS - Adaptive Interface Machine Direction | M_SIMA_G1000_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2022-02-18 05:04:00.000 |
| Hand | R |
| Grade | 1025 |
| COATING | PVD TiAlN+TiN |
| SUBSTRATE | HC |
| CEDC - Cutting Edge Count | 1 |
| AXGSUP - Axial Groove Support Direction | 1 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
