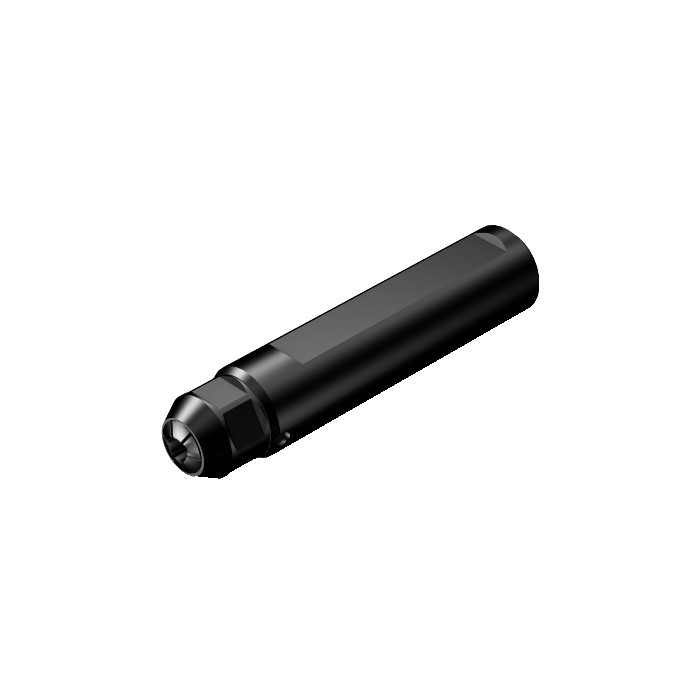

Sandvik Coromant CXS-A16-04-X Cylindrical shank with flat to CoroTurn™ XS adaptor

Name: Sandvik Coromant CXS-A16-04-X Cylindrical shank with flat to CoroTurn™ XS adaptor
SKU: 6879623
Price: 4164.15 ZAR
Availability: InStock

Be the first to review this product

R 4 164,15 inc. vat

In stock

SKU

6879623

Cylindrical shank with flat to CoroTurn® XS adaptor

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

Cylindrical shank with flat to CoroTurn® XS adaptor

More Information

More Information
CP - Coolant Pressure	8000000Pa
DCON - Connection Diameter	4mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	75mm
BD - Body Diameter	14.5mm
LB - Body Length	75mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	20Nm
WT - Weight Of Item	0.122kg
OAL - Overall Length	75mm
OHX - Maximum Overhang	22mm
LSC - Clamping Length	53mm
BAWS - Workpiece Side Body Angle	0deg
OHN - Minimum Overhang	22mm
WF - Functional Width	0mm
HF - Functional Height	0mm
H - Shank Height	15mm
LPR - Protruding Length	75mm
ORDCODE	CXS-A16-04-X
ADINTMS - Adaptive Interface Machine Direction	M_CYLM01_G1600_1
ADINTWS - Adaptive Interface Workpiece Direction	W_SIMA_F4000_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2021-12-22 14:40:00.000
Hand	N
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
