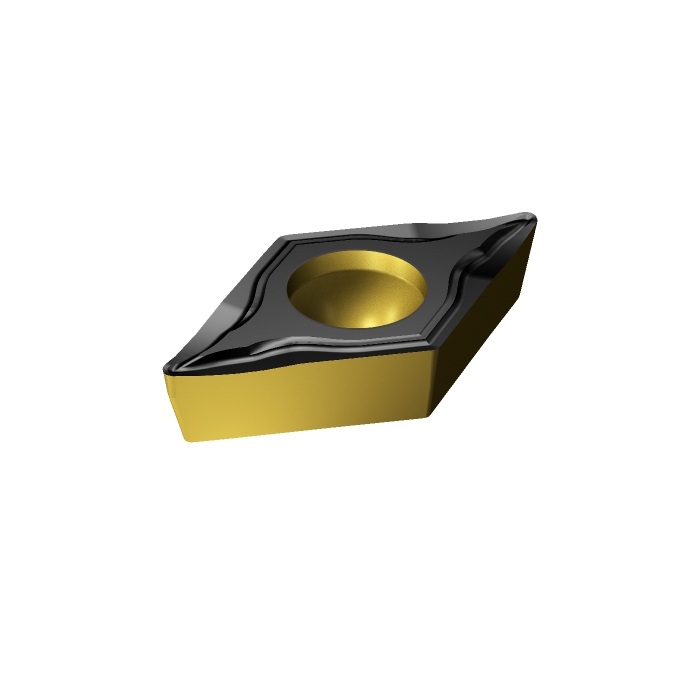

Sandvik Coromant DCGT 07 02 02-UM 1515 CoroTurn™ 107 insert for turning

R 302,45 inc. vat
In stock
SKU
5730427
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 1.2g
AN - Clearance Angle Major 7deg
IC - Inscribed Circle Diameter 6.35mm
RE - Corner Radius 0.2mm
Insert Thickness 2.38125mm
D1 - Fixing Hole Diameter 2.8mm
LE - Cutting Edge Effective Length 7.5519mm
L - Cutting Edge Length 7.7519mm
ORDCODE DCGT 07 02 02-UM 1515
CHANGEDATE 2021-12-17 17:19:00.000
Hand N
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code D
SSC - Insert Seat Size Code 07
CUTINT_SIZESHAPE - Insert Size And Shape MISO_DC0702_1
Grade 1515
COATING CVD TiCN+Al2O3+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation UM
CEDC - Cutting Edge Count 2
WEP - Wiper Edge Property False
