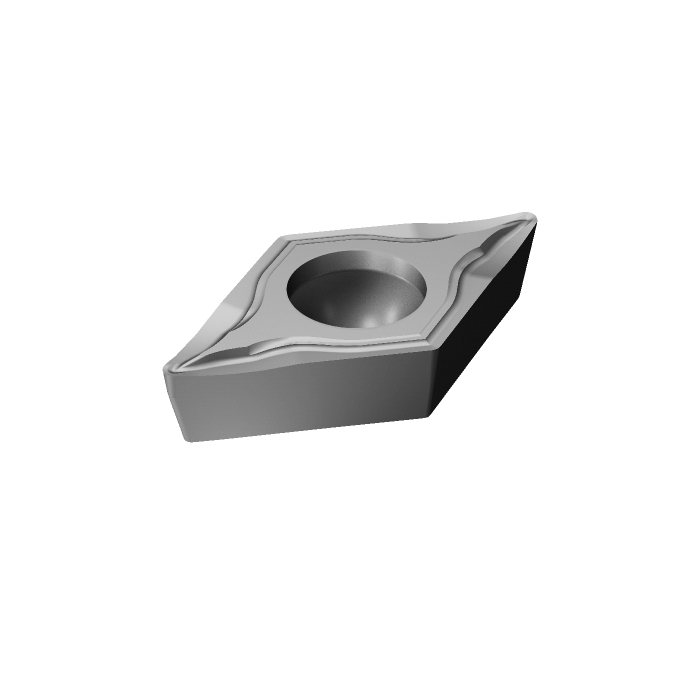

Sandvik Coromant DCGT 11 T3 04-UM H13A CoroTurn™ 107 insert for turning

R 294,40 inc. vat
In stock
SKU
5730403
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 0.005kg
AN - Clearance Angle Major 7deg
IC - Inscribed Circle Diameter 9.525mm
RE - Corner Radius 0.3969mm
Insert Thickness 3.96875mm
D1 - Fixing Hole Diameter 4.4mm
LE - Cutting Edge Effective Length 11.2279mm
L - Cutting Edge Length 11.6279mm
ORDCODE DCGT 11 T3 04-UM H13A
CHANGEDATE 2021-12-17 17:19:00.000
Hand N
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code D
SSC - Insert Seat Size Code 11
CUTINT_SIZESHAPE - Insert Size And Shape MISO_DC11T3_1
Grade H13A
SUBSTRATE HW
CBMD - Chip Breaker Manufacturer's Designation UM
CEDC - Cutting Edge Count 2
WEP - Wiper Edge Property False
