Sandvik Coromant DCGW11T304S01020FWH 7025 CoroTurn™ 107 insert for turning
R 1 305,25
inc. vat
In stock
SKU
6879557

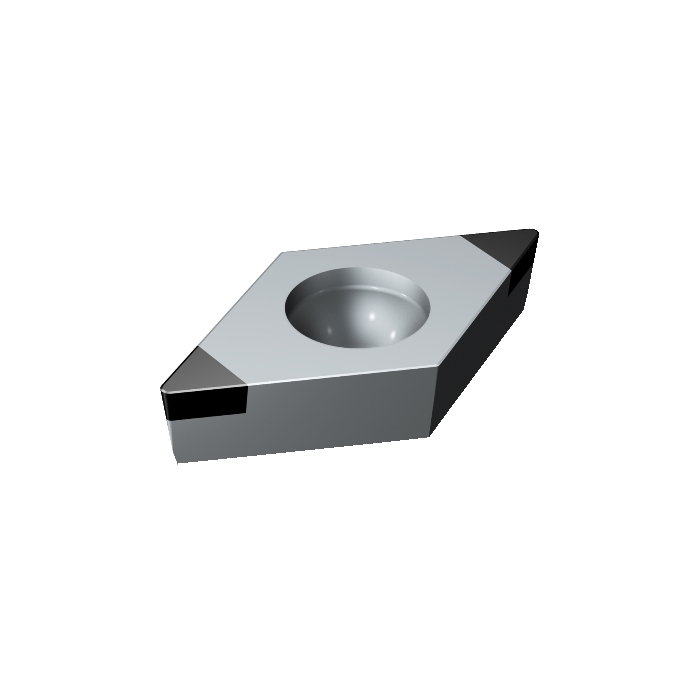

CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 0.005kg |
| AN - Clearance Angle Major | 7deg |
| IC - Inscribed Circle Diameter | 9.525mm |
| RE - Corner Radius | 0.4mm |
| Insert Thickness | 3.96875mm |
| D1 - Fixing Hole Diameter | 4.4mm |
| LE - Cutting Edge Effective Length | 1.8mm |
| L - Cutting Edge Length | 11.6279mm |
| KRINS - Major Cutting Edge Angle | 93deg |
| BN - Face Land Width | 0.1mm |
| GB - Face Land Angle | 20deg |
| BS - Wiper Edge Length | 0.45mm |
| GAN - Insert Rake Angle | 0deg |
| ORDCODE | DCGW11T304S01020FWH 7025 |
| CHANGEDATE | 2022-09-23 20:21:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | D |
| SSC - Insert Seat Size Code | 11 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_DC11T3_1 |
| Grade | 7025 |
| SUBSTRATE | BL |
| CBMD - Chip Breaker Manufacturer's Designation | WH |
| CEDC - Cutting Edge Count | 2 |
| WEP - Wiper Edge Property | True |
