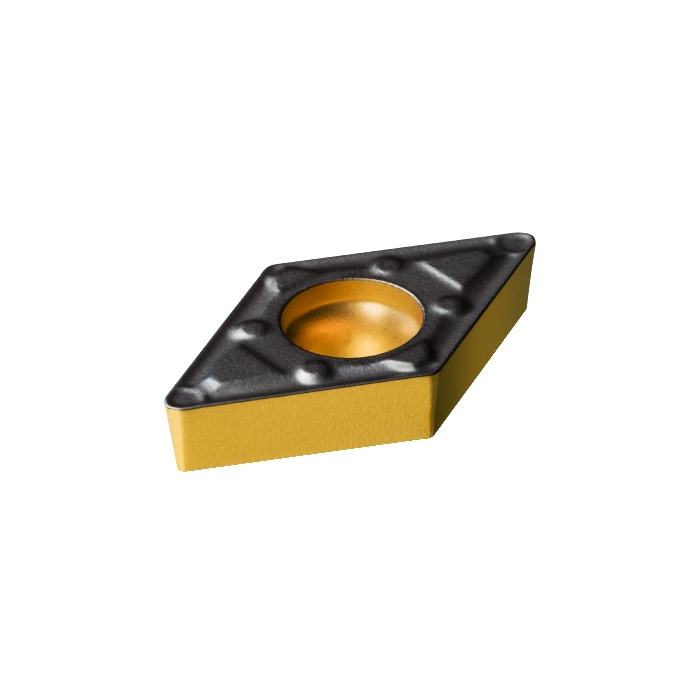

Sandvik Coromant DCMX 07 02 08-WF 1515 CoroTurn™ 107 insert for turning
R 186,30
inc. vat
In stock
SKU
5730930
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 1.2g |
| AN - Clearance Angle Major | 7deg |
| IC - Inscribed Circle Diameter | 6.35mm |
| RE - Corner Radius | 0.7938mm |
| Insert Thickness | 2.38125mm |
| D1 - Fixing Hole Diameter | 2.8mm |
| LE - Cutting Edge Effective Length | 6.9519mm |
| L - Cutting Edge Length | 7.7519mm |
| KRINS - Major Cutting Edge Angle | 93deg |
| BS - Wiper Edge Length | 0.6mm |
| ORDCODE | DCMX 07 02 08-WF 1515 |
| CHANGEDATE | 2021-12-17 17:35:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | D |
| SSC - Insert Seat Size Code | 07 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_DC0702_1 |
| Grade | 1515 |
| COATING | CVD TiCN+Al2O3+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | WF |
| CEDC - Cutting Edge Count | 2 |
| WEP - Wiper Edge Property | True |
