Sandvik Coromant WNGA060404S01525H 7115 T-Max™ P insert for turning
Next
Sandvik Coromant DNGA110412S01525H 7115 T-Max™ P insert for turning
Previous
![Sandvik Coromant WNGA060404S01525H 7115 T-Max™ P insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/619505c5d/sandvik-coromant-wnga060404s01525h-7115-t-maxtm-p-insert-for-turning.jpg)
![Sandvik Coromant DNGA110412S01525H 7115 T-Max™ P insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/619484f87/sandvik-coromant-dnga110412s01525h-7115-t-maxtm-p-insert-for-turning.jpg)
R 2 237,90
inc. vat
Out of stock
SKU
7190843
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days

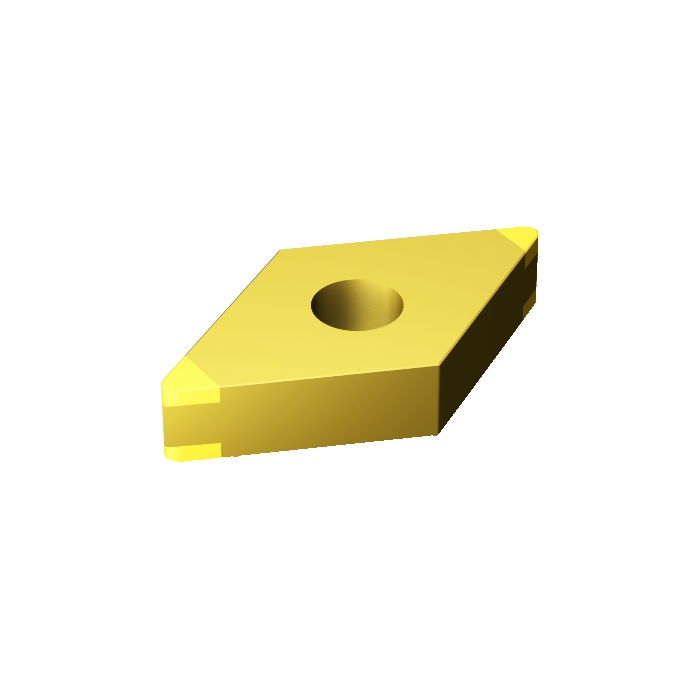

T-Max® P insert for turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 12.1g |
AN - Clearance Angle Major | 0deg |
IC - Inscribed Circle Diameter | 12.7mm |
RE - Corner Radius | 1.6mm |
Insert Thickness | 4.7625mm |
D1 - Fixing Hole Diameter | 5.156mm |
LE - Cutting Edge Effective Length | 2.5mm |
L - Cutting Edge Length | 15.5038mm |
BN - Face Land Width | 0.15mm |
GB - Face Land Angle | 25deg |
GAN - Insert Rake Angle | 0deg |
ORDCODE | DNGA150416S01525H 7115 |
CHANGEDATE | 2022-09-22 10:33:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 2 |
SC - Insert Shape Code | D |
SSC - Insert Seat Size Code | 15 |
CUTINT_SIZESHAPE - Insert Size And Shape | MISO_DN1504_1 |
Grade | 7115 |
COATING | PVD TiN |
SUBSTRATE | BC |
CEDC - Cutting Edge Count | 2 |
WEP - Wiper Edge Property | False |
