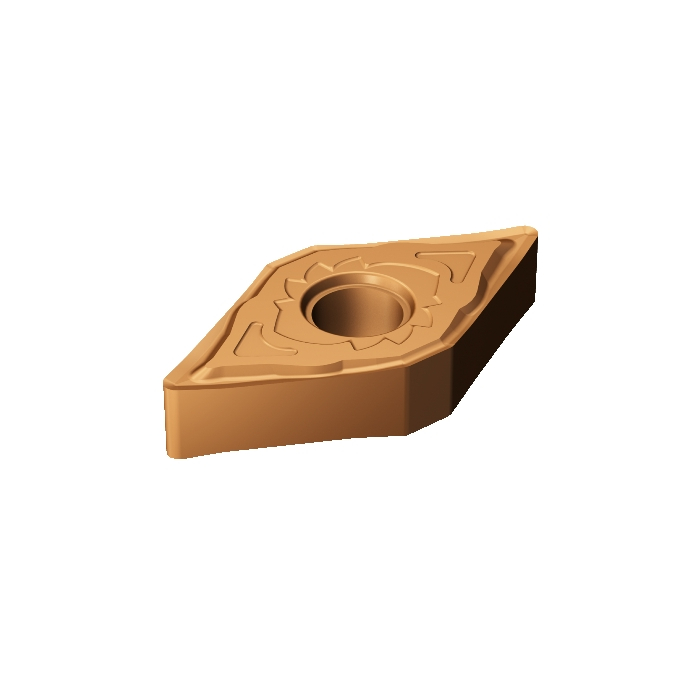

Sandvik Coromant DNGG 15 04 04-SGF 1125 T-Max™ P insert for turning
Next
Sandvik Coromant DNGG 15 04 04-SGF 1105 T-Max™ P insert for turning
Previous
Sandvik Coromant DNGG 15 04 04-SGF 1105 T-Max™ P insert for turning
Previous
Sandvik Coromant DNGG 15 04 04-SGF 1115 T-Max™ P insert for turning
R 366,85
inc. vat
In stock
SKU
5908996
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 11.6g |
| AN - Clearance Angle Major | 0deg |
| IC - Inscribed Circle Diameter | 12.7mm |
| RE - Corner Radius | 0.3969mm |
| Insert Thickness | 4.7625mm |
| D1 - Fixing Hole Diameter | 5.156mm |
| LE - Cutting Edge Effective Length | 6.4mm |
| L - Cutting Edge Length | 15.5038mm |
| ORDCODE | DNGG 15 04 04-SGF 1115 |
| CHANGEDATE | 2022-03-11 15:04:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 2 |
| SC - Insert Shape Code | D |
| SSC - Insert Seat Size Code | 15 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_DN1504_1 |
| Grade | 1115 |
| COATING | PVD TiAlN+TiAlN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | SGF |
| CEDC - Cutting Edge Count | 4 |
| WEP - Wiper Edge Property | False |
