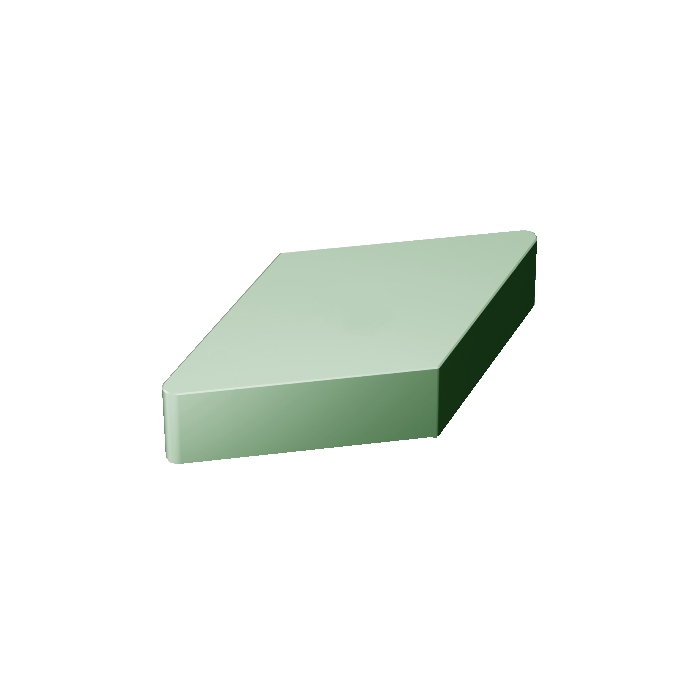

Sandvik Coromant DNGN150412T01020 670 T-Max™ insert for turning

R 649,75 inc. vat
In stock
SKU
5731527
T-Max® insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 4.2g
AN - Clearance Angle Major 0deg
IC - Inscribed Circle Diameter 12.7mm
RE - Corner Radius 1.1906mm
Insert Thickness 4.7625mm
LE - Cutting Edge Effective Length 14.3038mm
L - Cutting Edge Length 15.5038mm
BN - Face Land Width 0.1mm
GB - Face Land Angle 20deg
ORDCODE DNGN150412T01020 670
CHANGEDATE 2021-12-17 17:42:00.000
Hand N
IFS - Insert Mounting Style Code 1
SC - Insert Shape Code D
SSC - Insert Seat Size Code 15
CUTINT_SIZESHAPE - Insert Size And Shape MISO_DN1504_1
Grade 670
SUBSTRATE CR
CEDC - Cutting Edge Count 4
WEP - Wiper Edge Property False
