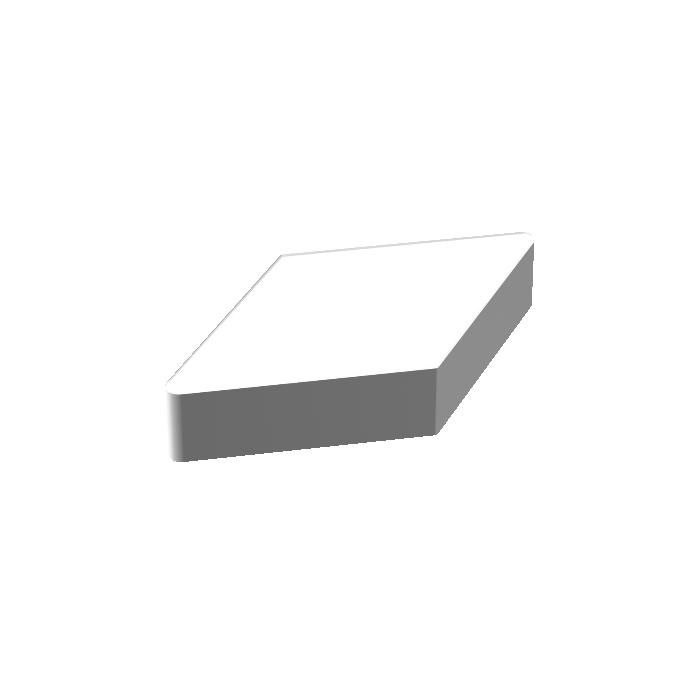

Sandvik Coromant DNGN150712T02520 620 T-Max™ insert for turning
R 227,70
inc. vat
In stock
SKU
5731587
T-Max® insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 2.5g |
| AN - Clearance Angle Major | 0deg |
| IC - Inscribed Circle Diameter | 12.7mm |
| RE - Corner Radius | 1.1906mm |
| Insert Thickness | 7.9375mm |
| LE - Cutting Edge Effective Length | 14.3038mm |
| L - Cutting Edge Length | 15.5038mm |
| BN - Face Land Width | 0.25mm |
| GB - Face Land Angle | 20deg |
| ORDCODE | DNGN150712T02520 620 |
| CHANGEDATE | 2021-12-21 15:14:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 1 |
| SC - Insert Shape Code | D |
| SSC - Insert Seat Size Code | 15 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_DN1507_1 |
| Grade | 620 |
| SUBSTRATE | CN |
| CEDC - Cutting Edge Count | 4 |
| WEP - Wiper Edge Property | False |
