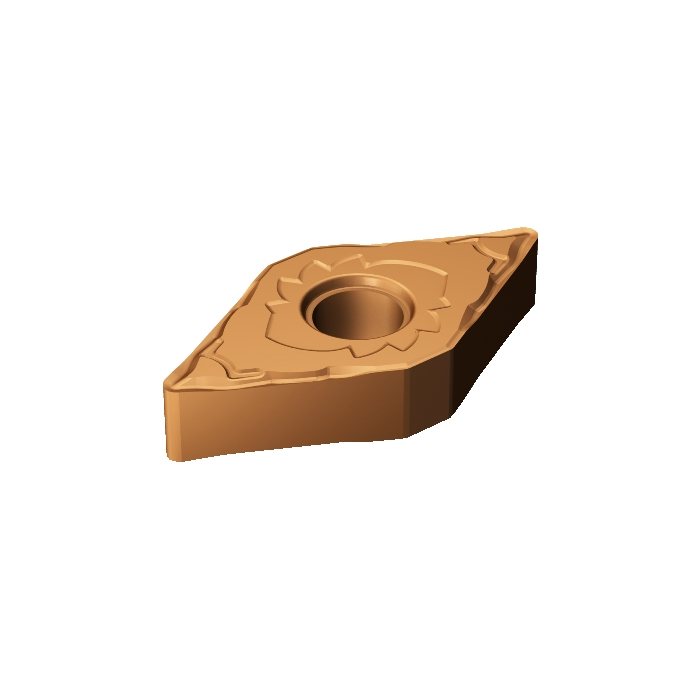

Sandvik Coromant DNMG 15 04 04-SF 1115 T-Max™ P insert for turning

R 294,40 inc. vat
In stock
SKU
5891393
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 11.5g
AN - Clearance Angle Major 0deg
IC - Inscribed Circle Diameter 12.7mm
RE - Corner Radius 0.3969mm
Insert Thickness 4.7625mm
D1 - Fixing Hole Diameter 5.156mm
LE - Cutting Edge Effective Length 6.4mm
L - Cutting Edge Length 15.5038mm
ORDCODE DNMG 15 04 04-SF 1115
CHANGEDATE 2022-03-11 16:04:00.000
Hand N
IFS - Insert Mounting Style Code 2
SC - Insert Shape Code D
SSC - Insert Seat Size Code 15
CUTINT_SIZESHAPE - Insert Size And Shape MISO_DN1504_1
Grade 1115
COATING PVD TiAlN+TiAlN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation SF
CEDC - Cutting Edge Count 4
WEP - Wiper Edge Property False
