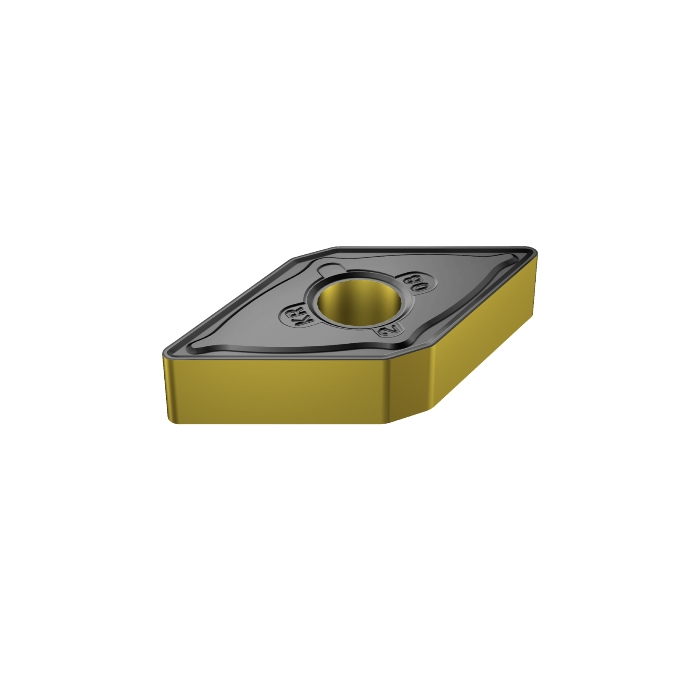

Sandvik Coromant DNMG 15 06 16-KR 3225 T-Max™ P insert for turning
Next
Sandvik Coromant DNMG 15 06 08-KR 3225 T-Max™ P insert for turning
Previous
R 320,85
inc. vat
In stock
SKU
6868560
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 0.016kg |
AN - Clearance Angle Major | 0deg |
IC - Inscribed Circle Diameter | 12.7mm |
RE - Corner Radius | 1.1906mm |
Insert Thickness | 6.35mm |
D1 - Fixing Hole Diameter | 5.156mm |
LE - Cutting Edge Effective Length | 14.3038mm |
L - Cutting Edge Length | 15.5038mm |
ORDCODE | DNMG 15 06 12-KR 3225 |
CHANGEDATE | 2022-03-21 16:08:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 2 |
SC - Insert Shape Code | D |
SSC - Insert Seat Size Code | 15 |
CUTINT_SIZESHAPE - Insert Size And Shape | MISO_DN1506_1 |
Grade | 3225 |
COATING | CVD TiCN+Al2O3+TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | KR |
CEDC - Cutting Edge Count | 4 |
WEP - Wiper Edge Property | False |
