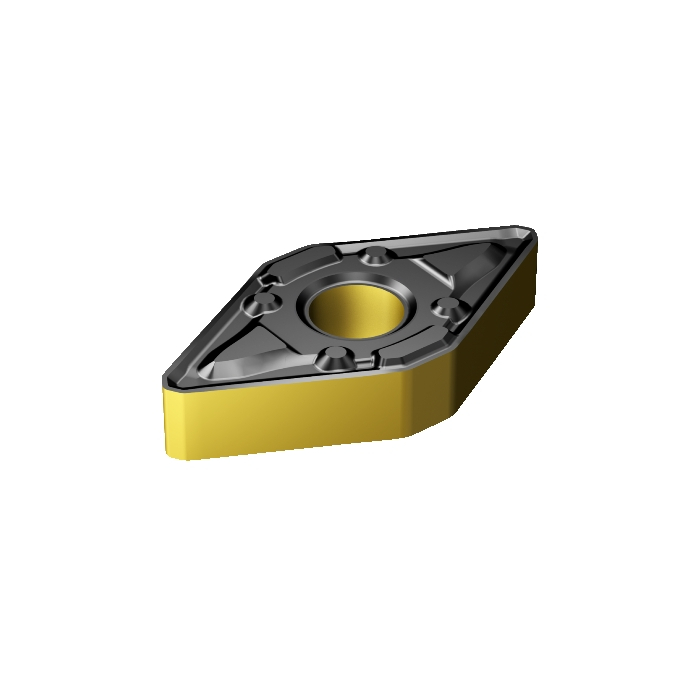

Sandvik Coromant DNMX 15 06 08-WM 4335 T-Max™ P insert for turning
R 382,95
inc. vat
In stock
SKU
7080947
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 0.014kg |
| AN - Clearance Angle Major | 0deg |
| IC - Inscribed Circle Diameter | 12.7mm |
| RE - Corner Radius | 0.7938mm |
| Insert Thickness | 6.35mm |
| D1 - Fixing Hole Diameter | 5.156mm |
| LE - Cutting Edge Effective Length | 14.7038mm |
| L - Cutting Edge Length | 15.5038mm |
| KRINS - Major Cutting Edge Angle | 93deg |
| BS - Wiper Edge Length | 0.7mm |
| ORDCODE | DNMX 15 06 08-WM 4335 |
| CHANGEDATE | 2022-09-22 11:51:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 2 |
| SC - Insert Shape Code | D |
| SSC - Insert Seat Size Code | 15 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_DN1506_1 |
| Grade | 4335 |
| COATING | CVD TiCN+Al2O3+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | WM |
| CEDC - Cutting Edge Count | 4 |
| WEP - Wiper Edge Property | True |
