Sandvik Coromant DRSNL 4040S 25 T-Max™ P shank tool for turning
Next
Sandvik Coromant DRSNL 3225P 15 T-Max™ P shank tool for turning
Previous
R 2 432,25
inc. vat
In stock
SKU
5734522
T-Max® P shank tool for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P shank tool for turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
LF - Functional Length | 170mm |
TQ - Torque | 6.4Nm |
WT - Weight Of Item | 1.267kg |
OAL - Overall Length | 170mm |
OHX - Maximum Overhang | 42.6mm |
LSC - Clamping Length | 127.4mm |
RMPX - Maximum Ramping Angle | 40deg |
BAWS - Workpiece Side Body Angle | 0deg |
BAMS - Machine Side Body Angle | 0deg |
WF - Functional Width | 40mm |
HF - Functional Height | 32mm |
GAMO - Orthogonal Rake Angle | -6deg |
LAMS - Inclination Angle | -6deg |
AN - Clearance Angle Major | 0deg |
IC - Inscribed Circle Diameter | 19.05mm |
RE - Corner Radius | 9.525mm |
Insert Thickness | 6.35mm |
H - Shank Height | 32mm |
B - Shank Width | 32mm |
ORDCODE | DRSNL 3232P 19 |
ADINTMS - Adaptive Interface Machine Direction | M_VKT01_A3232_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-04-07 01:18:00.000 |
MTP - Clamping Type Code | D |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WISO_RN1906_1 |
Hand | L |

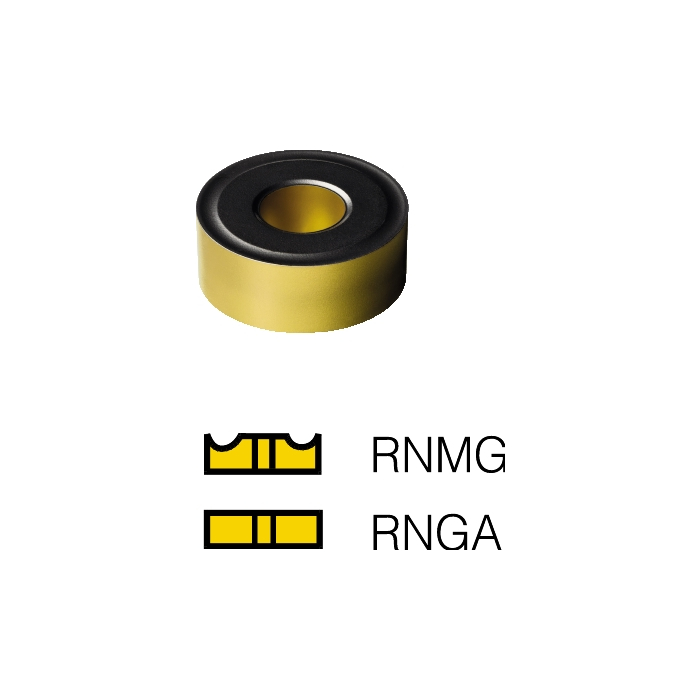

MIID - Master Insert Identification | RNMG 19 06 00 |
IFS - Insert Mounting Style Code | 2 |
SC - Insert Shape Code | R |
SSC - Insert Seat Size Code | 19 |
CICT - Cutting Item Count | 1 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
