Sandvik Coromant E05H-STUCL 05-GR CoroTurn™ 107 solid carbide boring bar for turning

Name: Sandvik Coromant E05H-STUCL 05-GR CoroTurn™ 107 solid carbide boring bar for turning
SKU: 6169468
Price: 6571.10 ZAR
Availability: InStock

Be the first to review this product

R 6 571,10 inc. vat

In stock

SKU

6169468

CoroTurn® 107 solid carbide boring bar for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroTurn® 107 solid carbide boring bar for turning

More Information

More Information
CP - Coolant Pressure	4000000Pa
DCON - Connection Diameter	5mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	100mm
BD - Body Diameter	5mm
TQ - Torque	0.4Nm
WT - Weight Of Item	0.039kg
OAL - Overall Length	100mm
OHX - Maximum Overhang	30mm
LSC - Clamping Length	88mm
KAPR - Tool Cutting Edge Angle	93deg
RMPX - Maximum Ramping Angle	0deg
DMIN - Minimum Bore Diameter	6mm
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
OHN - Minimum Overhang	12mm
WF - Functional Width	2.9mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
AN - Clearance Angle Major	7deg
IC - Inscribed Circle Diameter	3.175mm
RE - Corner Radius	0mm
Insert Thickness	1.4mm
ORDCODE	E05H-STUCL 05-GR
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_F5000_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	2
CHANGEDATE	2022-06-13 15:43:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_TC0501_2
Hand	L

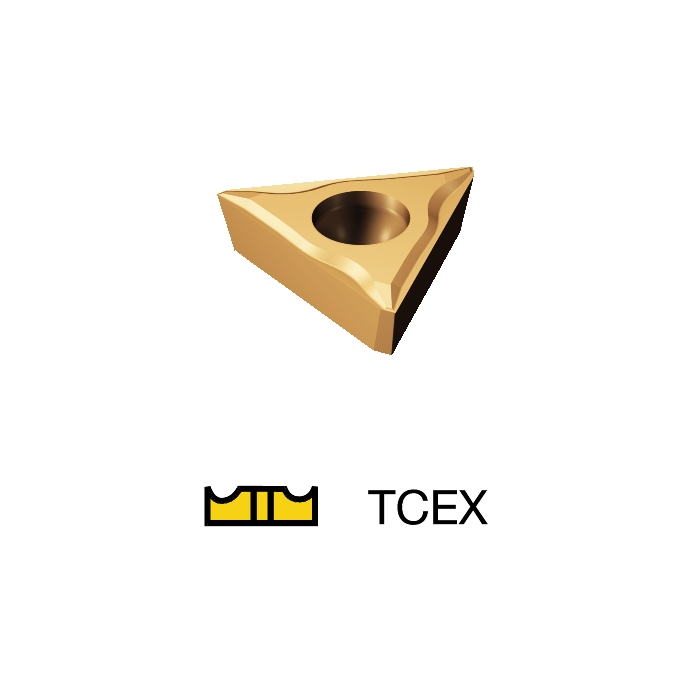

MIID - Master Insert Identification	TCEX 05 01 00R-F
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	T
SSC - Insert Seat Size Code	05
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
LOCAP - Location Aid Property	False
