Sandvik Coromant E06H-SWLPR 02-R CoroTurn™ 111 solid carbide boring bar for turning

Name: Sandvik Coromant E06H-SWLPR 02-R CoroTurn™ 111 solid carbide boring bar for turning
SKU: 5734221
Price: 3479.90 ZAR
Availability: InStock

Be the first to review this product

R 3 479,90 inc. vat

In stock

SKU

5734221

CoroTurn® 111 solid carbide boring bar for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroTurn® 111 solid carbide boring bar for turning

More Information

More Information
CP - Coolant Pressure	1000000Pa
DCON - Connection Diameter	6mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	100mm
BD - Body Diameter	6mm
TQ - Torque	0.6Nm
WT - Weight Of Item	0.019kg
OAL - Overall Length	100mm
OHX - Maximum Overhang	36mm
LSC - Clamping Length	87mm
KAPR - Tool Cutting Edge Angle	95deg
RMPX - Maximum Ramping Angle	0deg
DMIN - Minimum Bore Diameter	8.5mm
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
OHN - Minimum Overhang	13mm
WF - Functional Width	4.5mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	-11deg
AN - Clearance Angle Major	11deg
IC - Inscribed Circle Diameter	3.96875mm
RE - Corner Radius	0.1984375mm
Insert Thickness	1.5875mm
ORDCODE	E06H-SWLPR 02-R
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_F6000_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	2
CHANGEDATE	2022-08-18 15:24:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_WP0201_1
Hand	R

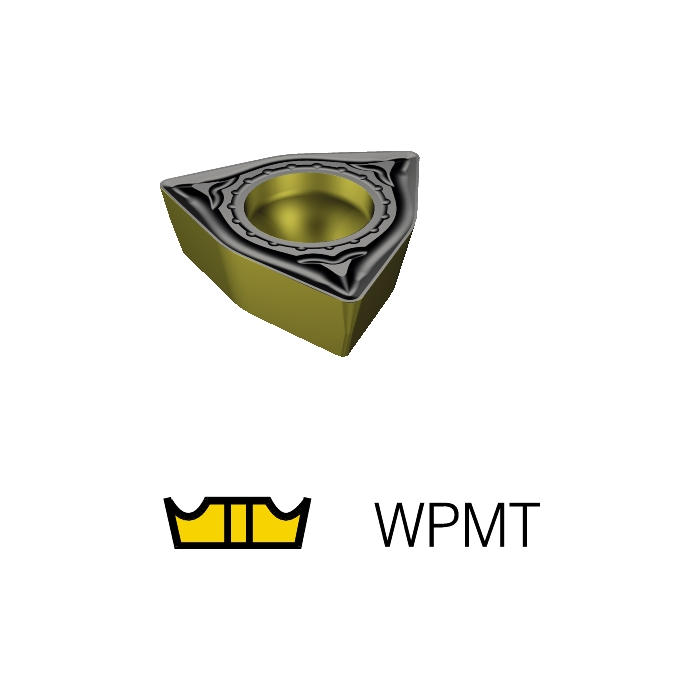

MIID - Master Insert Identification	WPMT 02 01 02
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	W
SSC - Insert Seat Size Code	02
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
LOCAP - Location Aid Property	True
