Sandvik Coromant E08K-STFPL 06-R CoroTurn™ 111 solid carbide boring bar for turning
R 4 152,65
inc. vat
In stock
SKU
5733582
CoroTurn® 111 solid carbide boring bar for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 111 solid carbide boring bar for turning
| CP - Coolant Pressure | 1000000Pa |
|---|---|
| DCON - Connection Diameter | 8mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 125mm |
| BD - Body Diameter | 8mm |
| TQ - Torque | 0.6Nm |
| WT - Weight Of Item | 0.041kg |
| OAL - Overall Length | 125mm |
| OHX - Maximum Overhang | 48mm |
| LSC - Clamping Length | 108mm |
| KAPR - Tool Cutting Edge Angle | 91deg |
| RMPX - Maximum Ramping Angle | 0deg |
| DMIN - Minimum Bore Diameter | 10mm |
| BAWS - Workpiece Side Body Angle | 0deg |
| BAMS - Machine Side Body Angle | 0deg |
| OHN - Minimum Overhang | 17mm |
| WF - Functional Width | 5mm |
| HF - Functional Height | 0mm |
| GAMO - Orthogonal Rake Angle | 2deg |
| LAMS - Inclination Angle | -8deg |
| AN - Clearance Angle Major | 11deg |
| IC - Inscribed Circle Diameter | 3.96875mm |
| RE - Corner Radius | 0.198437mm |
| Insert Thickness | 1.905mm |
| ORDCODE | E08K-STFPL 06-R |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLR_F8000_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 3 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2022-06-13 15:02:00.000 |
| MTP - Clamping Type Code | S |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WISO_TP06T1_1 |
| Hand | L |

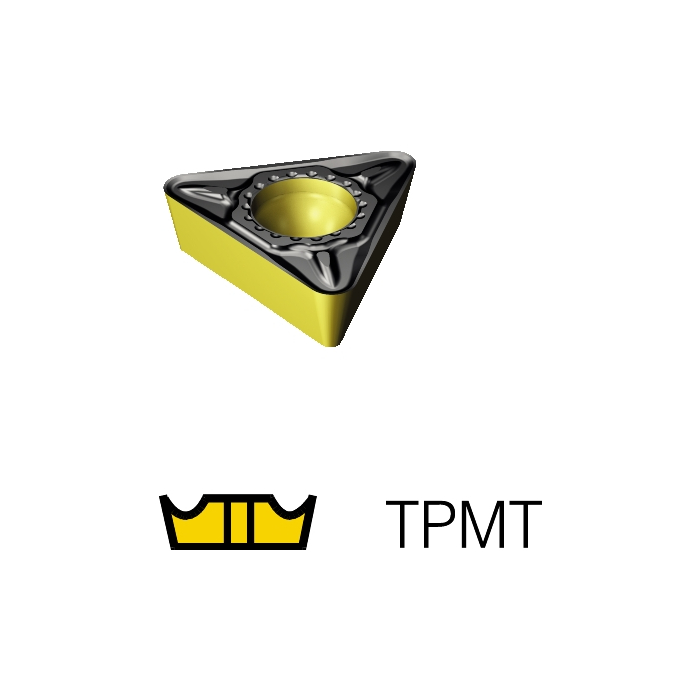

| MIID - Master Insert Identification | TPMT 06 T1 02 |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | T |
| SSC - Insert Seat Size Code | 06 |
| CICT - Cutting Item Count | 1 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
| LOCAP - Location Aid Property | True |
