Sandvik Coromant E08R-SWLPR 2-R CoroTurn™ 111 solid carbide boring bar for turning

Name: Sandvik Coromant E08R-SWLPR 2-R CoroTurn™ 111 solid carbide boring bar for turning
SKU: 5732595
Price: 6381.35 ZAR
Availability: InStock

Be the first to review this product

R 6 381,35 inc. vat

In stock

SKU

5732595

CoroTurn® 111 solid carbide boring bar for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroTurn® 111 solid carbide boring bar for turning

More Information

More Information
CP - Coolant Pressure	1000000Pa
DCON - Connection Diameter	12.7mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	203.2mm
BD - Body Diameter	12.7mm
TQ - Torque	0.9Nm
WT - Weight Of Item	0.175kg
OAL - Overall Length	203.2mm
OHX - Maximum Overhang	76.2mm
LSC - Clamping Length	179.1mm
KAPR - Tool Cutting Edge Angle	95deg
RMPX - Maximum Ramping Angle	0deg
DMIN - Minimum Bore Diameter	15.2mm
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
OHN - Minimum Overhang	24.13mm
WF - Functional Width	7.9248mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	6deg
LAMS - Inclination Angle	-3deg
AN - Clearance Angle Major	11deg
IC - Inscribed Circle Diameter	6.35mm
RE - Corner Radius	0.396875mm
Insert Thickness	2.38125mm
ORDCODE	E08R-SWLPR 2-R
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_R5000_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	2
CHANGEDATE	2022-08-18 15:18:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_WP0402_1
Hand	R

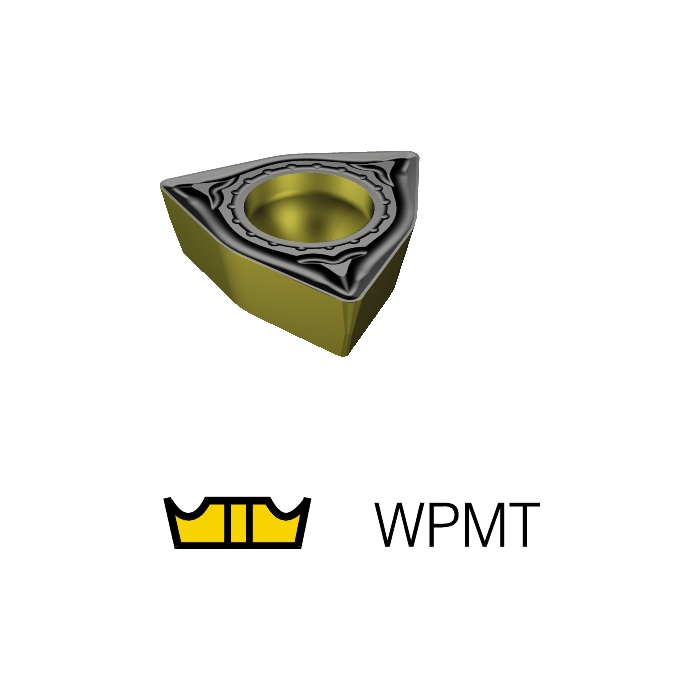

MIID - Master Insert Identification	WPMT 04 02 04
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	W
SSC - Insert Seat Size Code	04
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
LOCAP - Location Aid Property	True
