Sandvik Coromant E12Q-SCLPR 06-R CoroTurn™ 111 solid carbide boring bar for turning

Name: Sandvik Coromant E12Q-SCLPR 06-R CoroTurn™ 111 solid carbide boring bar for turning
SKU: 5732651
Price: 6381.35 ZAR
Availability: InStock

Be the first to review this product

R 6 381,35 inc. vat

In stock

SKU

5732651

CoroTurn® 111 solid carbide boring bar for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroTurn® 111 solid carbide boring bar for turning

More Information

More Information
CP - Coolant Pressure	1000000Pa
DCON - Connection Diameter	12mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	180mm
BD - Body Diameter	12mm
TQ - Torque	0.9Nm
WT - Weight Of Item	0.137kg
OAL - Overall Length	180mm
OHX - Maximum Overhang	72mm
LSC - Clamping Length	155mm
KAPR - Tool Cutting Edge Angle	95deg
RMPX - Maximum Ramping Angle	0deg
DMIN - Minimum Bore Diameter	16mm
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
OHN - Minimum Overhang	25mm
WF - Functional Width	9mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	6deg
LAMS - Inclination Angle	-3deg
AN - Clearance Angle Major	11deg
IC - Inscribed Circle Diameter	6.35mm
RE - Corner Radius	0.396875mm
Insert Thickness	2.38125mm
ORDCODE	E12Q-SCLPR 06-R
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_G1200_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	2
CHANGEDATE	2022-08-18 15:19:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_CP0602_1
Hand	R

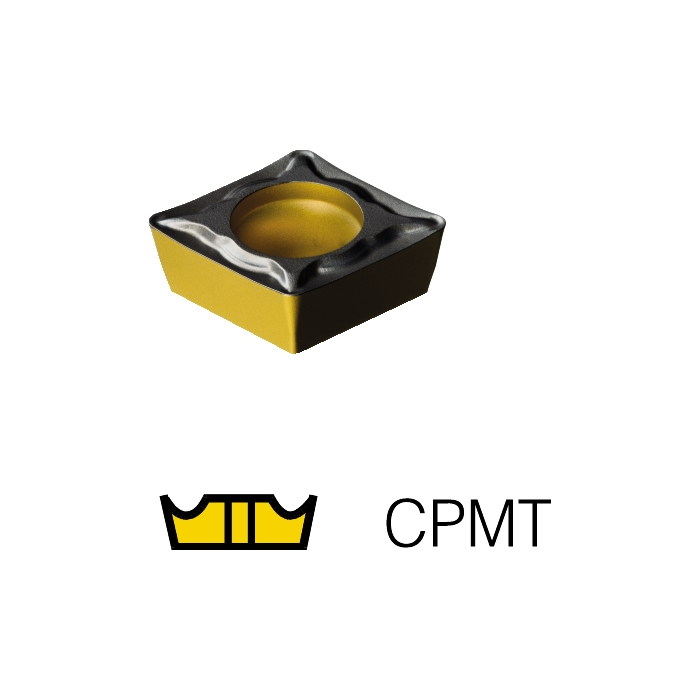

MIID - Master Insert Identification	CPMT 06 02 04
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	C
SSC - Insert Seat Size Code	06
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
LOCAP - Location Aid Property	True
