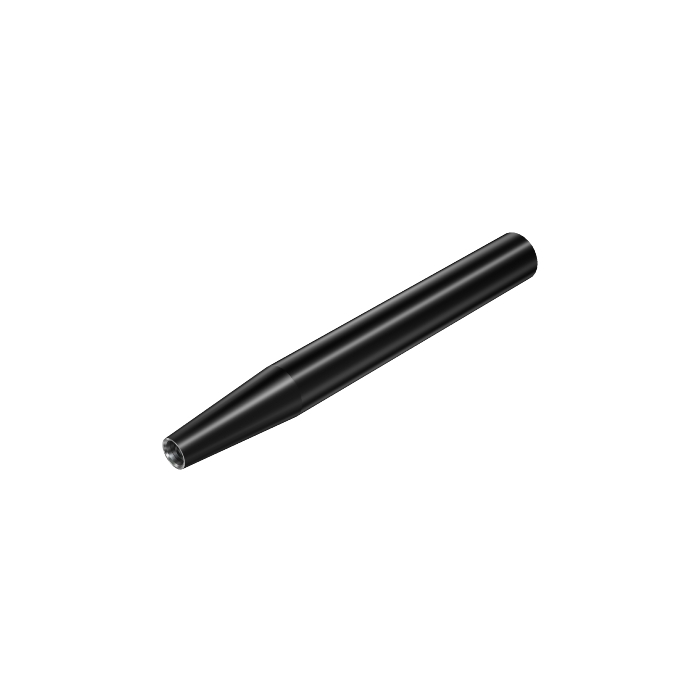

Sandvik Coromant E10-A16-CS-140 Cylindrical shank to Coromant EH adaptor
Next
Sandvik Coromant E20-A25-SS-080 Cylindrical shank to Coromant EH adaptor
Previous
R 4 524,10
inc. vat
In stock
SKU
5731447
Cylindrical shank to Coromant EH adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Cylindrical shank to Coromant EH adaptor
CP - Coolant Pressure | 8000000Pa |
---|---|
DCON - Connection Diameter | 19.2mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 180mm |
BD - Body Diameter | 32mm |
LB - Body Length | 180mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 50Nm |
RPMX - Rotational Speed Maximum | 200001/min |
WT - Weight Of Item | 1.057kg |
OAL - Overall Length | 180mm |
OHX - Maximum Overhang | 129mm |
LSC - Clamping Length | 107mm |
ORDCODE | E20-A32-CS-180 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLR_G3200_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_SAT01_A0200_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 1 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-02-09 14:01:00.000 |
TCDCON - Connection Diameter Tolerance | h6 |
DPC - Damping Property | False |
DCP - Data Chip Provision | False |
BBD - Balanced By Design | True |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
LOCAP - Location Aid Property | False |
