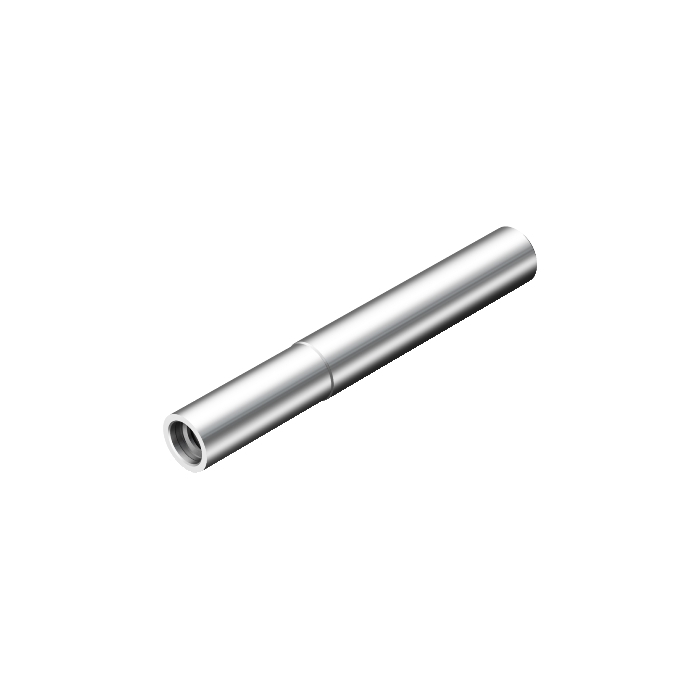

Sandvik Coromant EH16-A16-SH-130 Cylindrical shank to Coromant EH adaptor

Name: Sandvik Coromant EH16-A16-SH-130 Cylindrical shank to Coromant EH adaptor
SKU: 6970358
Price: 11731.15 ZAR
Availability: InStock

Be the first to review this product

R 11 731,15 inc. vat

In stock

SKU

6970358

Cylindrical shank to Coromant EH adaptor

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

Cylindrical shank to Coromant EH adaptor

More Information

More Information
CP - Coolant Pressure	8000000Pa
DCON - Connection Diameter	15.4mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	130mm
BD - Body Diameter	16mm
LB - Body Length	130mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	30Nm
RPMX - Rotational Speed Maximum	220001/min
WT - Weight Of Item	522g
OAL - Overall Length	130mm
OHX - Maximum Overhang	81mm
LSC - Clamping Length	94mm
ORDCODE	EH16-A16-SH-130
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_G1600_1
ADINTWS - Adaptive Interface Workpiece Direction	W_SAT01_A0160_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	1
BMC - Body Material Code	5
CHANGEDATE	2021-12-22 14:48:00.000
DPC - Damping Property	False
DCP - Data Chip Provision	False
BBD - Balanced By Design	True
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
