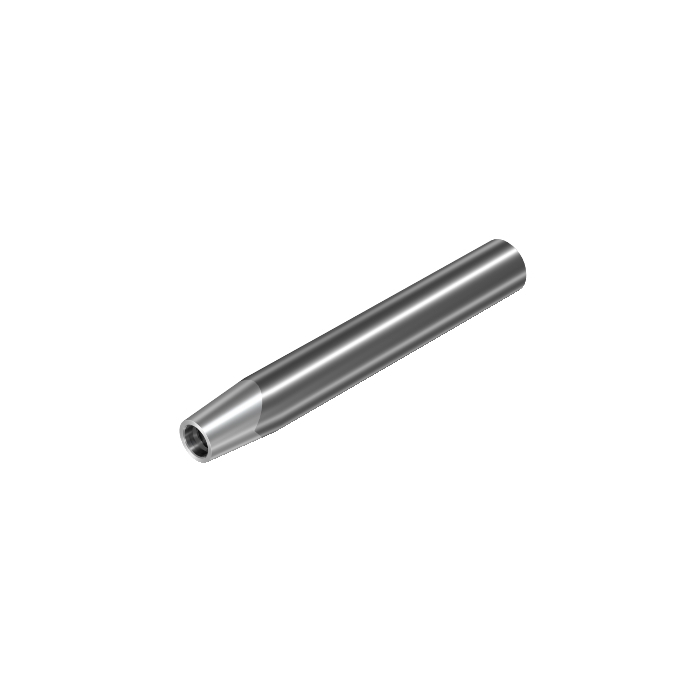

Sandvik Coromant EH16-A20-CE-165 Cylindrical shank to Coromant EH adaptor

Name: Sandvik Coromant EH16-A20-CE-165 Cylindrical shank to Coromant EH adaptor
SKU: 6854900
Price: 11436.75 ZAR
Availability: InStock

Be the first to review this product

R 11 436,75 inc. vat

In stock

SKU

6854900

Cylindrical shank to Coromant EH adaptor

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

Cylindrical shank to Coromant EH adaptor

More Information

More Information
CP - Coolant Pressure	8000000Pa
DCON - Connection Diameter	15.4mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	165mm
BD - Body Diameter	20mm
LB - Body Length	165mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	30Nm
RPMX - Rotational Speed Maximum	270001/min
WT - Weight Of Item	0.776kg
OAL - Overall Length	165mm
OHX - Maximum Overhang	114mm
LSC - Clamping Length	138.7mm
OHN - Minimum Overhang	26.3mm
ORDCODE	EH16-A20-CE-165
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_G2000_1
ADINTWS - Adaptive Interface Workpiece Direction	W_SAT01_A0160_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	1
BMC - Body Material Code	2
CHANGEDATE	2021-12-21 12:10:00.000
DPC - Damping Property	False
DCP - Data Chip Provision	False
BBD - Balanced By Design	True
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
