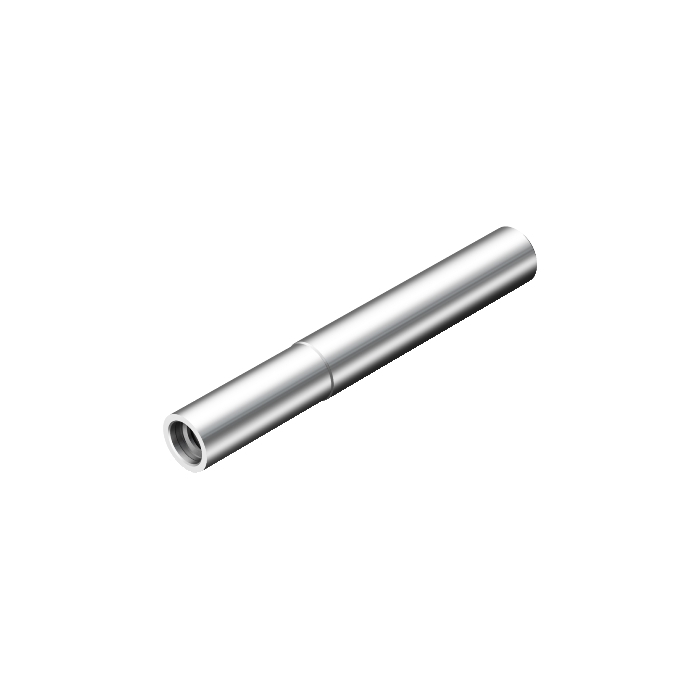

Sandvik Coromant EH25-A25-SH-185 Cylindrical shank to Coromant EH adaptor

Name: Sandvik Coromant EH25-A25-SH-185 Cylindrical shank to Coromant EH adaptor
SKU: 6970400
Price: 14510.70 ZAR
Availability: InStock

Be the first to review this product

R 14 510,70 inc. vat

In stock

SKU

6970400

Cylindrical shank to Coromant EH adaptor

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

Cylindrical shank to Coromant EH adaptor

More Information

More Information
CP - Coolant Pressure	8000000Pa
DCON - Connection Diameter	24.1mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	185mm
BD - Body Diameter	25mm
LB - Body Length	185mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	65Nm
RPMX - Rotational Speed Maximum	160001/min
WT - Weight Of Item	1.58kg
OAL - Overall Length	185mm
OHX - Maximum Overhang	128mm
LSC - Clamping Length	119mm
ORDCODE	EH25-A25-SH-185
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_G2500_1
ADINTWS - Adaptive Interface Workpiece Direction	W_SAT01_A0250_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	1
BMC - Body Material Code	5
CHANGEDATE	2022-05-30 06:21:00.000
DPC - Damping Property	False
DCP - Data Chip Provision	False
BBD - Balanced By Design	True
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
