CP7773 1" IMPACT WRENCH
Special Price
R 24 723,29
inc. vat
Regular Price
R 30 904,10
inc. vat
In stock
SKU
CP-8941077730
Reliable nationwide shipping
Delivery in 4 - 5 days

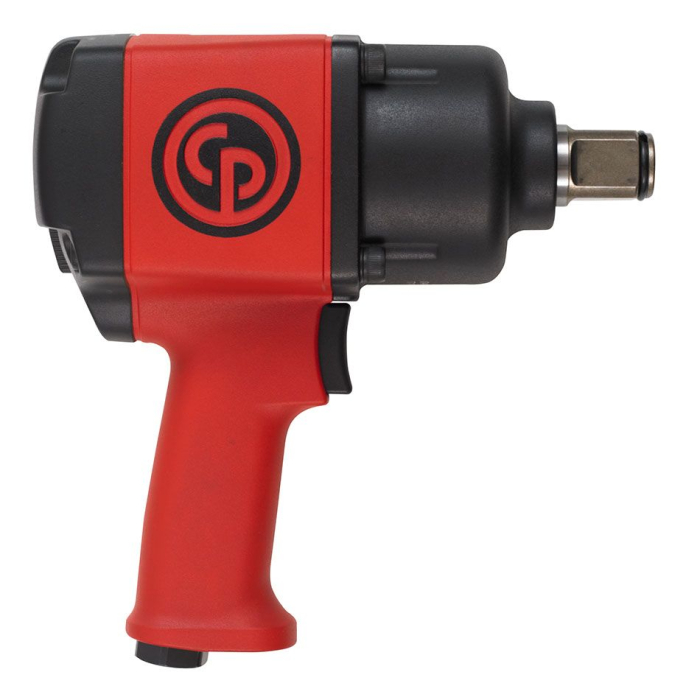

CP7773 1" IMPACT WRENCH
Benefits
- Ideal for General Maintenance applications
- Powerful motor and durable clutch
- Operator comfort due to reduced noise level
CE Certificate
Operators Manual
Exploded View
Safety Instructions & Data Sheets
| Metric | Imperial | |
|---|---|---|
| Model | CP7773 | |
| Part number | 8941077730 | |
| Actual air consumption | 14.2 l/s | 30 cfm |
| Air inlet thread size | 3/8 " | |
| Average air consumption | 3.5 l/s | 7.5 cfm |
| Blows per minute | 900 | |
| Clutch type | Twin hammer | |
| European Standards | EN ISO 11148-6:2013 | |
| Free speed | 6300 rpm | |
| Handle type | Pistol | |
| Length | 234 mm | 9.2 " |
| Maximum Torque (reverse) | 1630 Nm | 1200 ft.lbs |
| Min. hose size | 13 mm | 1/2 " |
| Net weight | 5 1/2 kg | 12.05 lb |
| Power/weight ratio | 296.4 Nm/kg | 99.6 ft.lb/lb |
| Side to centre | 45 mm | 1.8 " |
| Socket retainer | Friction ring | |
| Sound Power | 107 db(A) | |
| Sound pressure | 96 db(A) | |
| Square drive | 1 " | |
| VST2 | 48 | |
| Vibration | 10.4 m/s² | |
| Vibration ISO | ISO-28927-2 | |
| Vibration uncertainty (K) | 4.2 m/s² | |
| Working Torque Range (fwd) | 136 - 1,288 Nm | 100 - 950 ft.lbs |
- 1" pistol impact wrench with ring retainer
- Twin hammer clutch
- High power: 1200 ft.lbs (1627 Nm)
- Compact size with only 12,1 lbs (5.25 kg)
- Combined power regulator with forward/reverse
