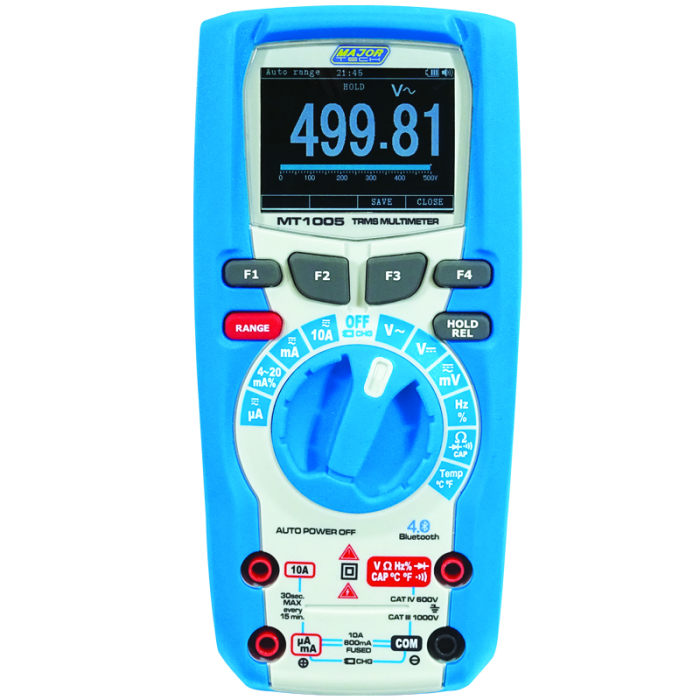

Major Tech MT1005 TRMS Industrial Multimeter with TFT & Bluetooth, CATIV, 600V
The MT1005 Heavy-duty Industrial True RMS Digital Multimeter with TFT color LCD display provides fast A/D converting sampling time, high accuracy, built-in data logging and Trend Capture features. It can trace any interruptions of the equipment and record events automatically unattended. It is easy to find and solve the problems with the Bluetooth technology and memory of the datasheets whilst providing safer measurements with the double moulded plastic housing design.
Accessories :
- Soft Carrying Case
- Test Leads
- MT660 Temperature Probe
- Instruction Manual
- Rechargeable Li-ion Batteries
- Meterbox IMM Software
Editorial Technical Datasheet Instruction Manual
Additional information
| DC Voltage |
1000V |
|---|---|
| DC Voltage resolution |
0.01mV |
| DC Voltage accuracy |
±(0.05% +5) |
| AC Voltage |
1000V |
| AC Voltage resolution |
0.01mV |
| AC voltage accuracy |
±(0.05% +5) |
| AC + DC TRMS voltage |
1000V |
| AC + DC voltage resolution |
0.1mV |
| AC + DC voltage accuracy |
±(1.2% +20) |
| DC Current |
10A |
| DC Current resolution |
0.01µA |
| DC Current accuracy |
±(0.2% +5) |
| AC Current |
10A |
| AC current resolution |
0.01µA |
| AC Current accuracy |
±(0.8% +5) |
| Duty Cycle |
0.1 to 99.9% |
| Duty Cycle resolution |
0.01% |
| Duty Cycle accuracy |
±(1.2% +2) |
| Resistance |
50MΩ |
| Resistance resolution |
0.01Ω |
| Resistance accuracy |
±(0.2% +5) |
| Frequency |
50Hz – 10mHz Electronic |
| Frequency resolution |
0.001Hz |
| Frequency accuracy |
±(0.01% +5) |
| 4-20mA% |
Yes |
| Capacitance |
10mF |
| Capacitance resolution |
0.001nF |
| Capacitance accuracy |
±(1.5% +8) |
| Temperature |
-200° to 1350°C |
| Temperature resolution |
0.1°C |
| Temperature accuracy |
±(1.0% +3) |
| Continuity |
Audible signal will sound if the resistance ˂25Ω Test Current ˂0.35mA |
| Diode Test |
Test current 0.9mA max, open circuit voltage 3.2V DC typical |
| True RMS Measurements |
AC |
| AC Bandwidth |
50Hz to 20KHz |
| Display |
50 000 count TFT LCD |
| Bargraph |
Yes |
| Bluetooth |
Yes |
| Records events and Trends |
Yes |
| Data logging |
Yes |
| Over-range indication |
Yes |
| Input Impedance |
˃10MΩ VDC & ˃9MΩ VAC |
| Min Max |
Yes |
| Peak hold |
1ms |
| Back Light |
Yes |
| Enclosure |
Double-moulded |
| Low battery indication |
Yes |
| Power Supply |
7.4V rechargeable li-ion, 2300mAh |
| Dimensions |
170 x 79 x 50mm |
| Weight |
360g |
- Large 50,000 count 320 x 240 TFT color LCD display
- Logging function with Trend Capture for easy review of logged data
- Graph 100 Data review
- Bluetooth interface for easy data transfer & accuracy calibration
- 10kHz bandwidth (voltage/current)
- AC, ACV+DCV True-RMS measurements
- Records events and trends
- Saves measurements
- A/D convert fast sampling time
- Peak capture (records transients as fast as 250μs)
- Min/Max/Average with Timestamp (records signal fluctuations)
- 4-20mA process loop measurements with % reading
- Battery capacity indication
- Date indication
- Meterbox iMM & cloud service
- IP67 – Dust & Waterproof
- CAT IV 600V and CAT III 1000V
