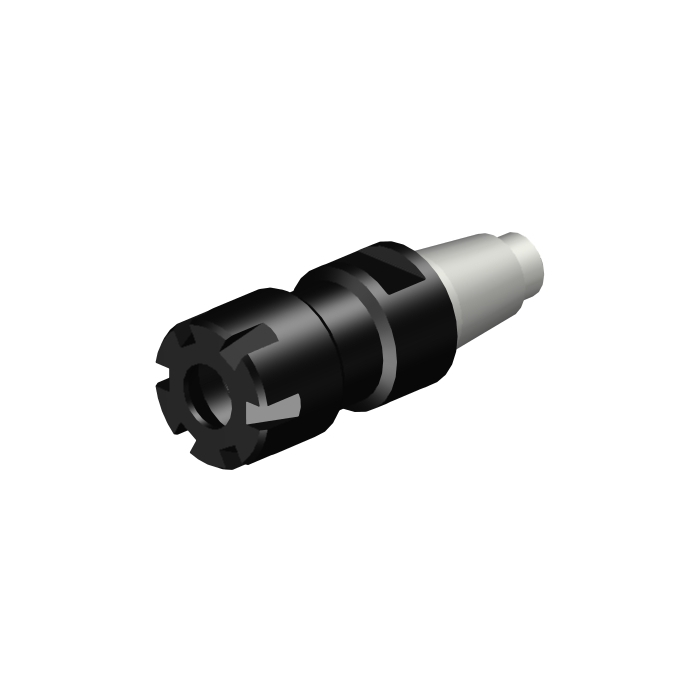

Sandvik Coromant ER-EH16-11-028 Coromant EH to ER adaptor
R 4 639,10
inc. vat
Out of stock
SKU
6854916
Coromant EH to ER adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant EH to ER adaptor
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DFC - Functional Diameter | 11mm |
| DCON - Connection Diameter | 11.4mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 20.5mm |
| BD - Body Diameter | 16mm |
| LB - Body Length | 28mm |
| BHTA - Body Half Taper Angle | 0deg |
| RPMX - Rotational Speed Maximum | 400001/min |
| WT - Weight Of Item | 0.033kg |
| OAL - Overall Length | 45mm |
| OHX - Maximum Overhang | 20.5mm |
| ORDCODE | ER-EH16-11-028 |
| ADINTMS - Adaptive Interface Machine Direction | M_SAT01_A0160_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CLTERB_C0110_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-09-07 10:19:00.000 |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| BBD - Balanced By Design | True |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
