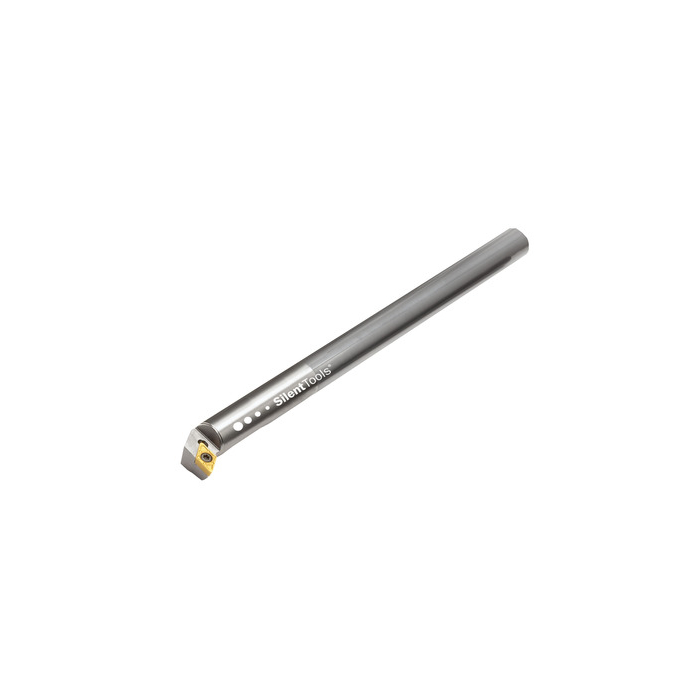

Sandvik Coromant F08Q-SDUPR 2-ER CoroTurn™ 111 damped carbide boring bar for turning
R 10 868,65
inc. vat
In stock
SKU
5733372
CoroTurn® 111 damped carbide boring bar for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 111 damped carbide boring bar for turning
| DCON - Connection Diameter | 12.7mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 184.15mm |
| BD - Body Diameter | 12.7mm |
| TQ - Torque | 0.9Nm |
| WT - Weight Of Item | 0.333kg |
| OAL - Overall Length | 184.15mm |
| OHX - Maximum Overhang | 127mm |
| LSC - Clamping Length | 100.2mm |
| KAPR - Tool Cutting Edge Angle | 93deg |
| RMPX - Maximum Ramping Angle | 27deg |
| DMIN - Minimum Bore Diameter | 18.0086mm |
| BAWS - Workpiece Side Body Angle | 0deg |
| BAMS - Machine Side Body Angle | 0deg |
| OHN - Minimum Overhang | 84mm |
| WF - Functional Width | 10.8966mm |
| HF - Functional Height | 0mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | -1deg |
| AN - Clearance Angle Major | 11deg |
| IC - Inscribed Circle Diameter | 6.35mm |
| RE - Corner Radius | 0.396875mm |
| Insert Thickness | 2.38125mm |
| ORDCODE | F08Q-SDUPR 2-ER |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLR_R5000_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2022-08-19 18:06:00.000 |
| MTP - Clamping Type Code | S |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WISO_DP0702_1 |
| Hand | R |
| MIID - Master Insert Identification | DPMT 07 02 04 |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | D |
| SSC - Insert Seat Size Code | 07 |
| CICT - Cutting Item Count | 1 |
| DPC - Damping Property | True |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
| LOCAP - Location Aid Property | True |
