Product added to cart

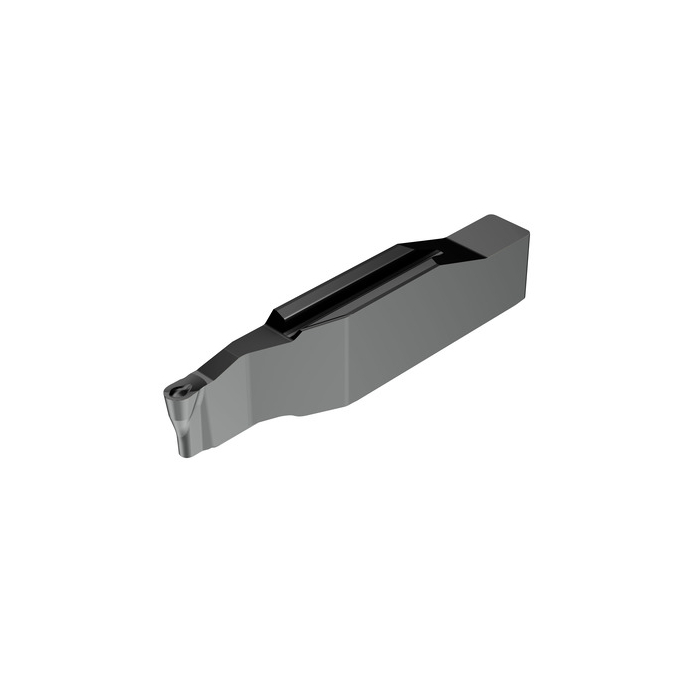

Sandvik Coromant L123H1-0200-RO 1125 CoroCut™ 1-2 insert for profiling
Next
Sandvik Coromant R123H1-0200-RO S05F CoroCut™ 1-2 insert for profiling
Previous
R 449,65
inc. vat
In stock
SKU
6256906
CoroCut® 1-2 insert for profiling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 insert for profiling
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 5.1g |
KAPR - Tool Cutting Edge Angle | 95deg |
RMPX - Maximum Ramping Angle | 90deg |
BAMS - Machine Side Body Angle | 0deg |
AN - Clearance Angle Major | 7deg |
RE - Corner Radius | 1mm |
CW - Cutting Width | 2mm |
CWTOLL - Cutting Width Lower Tolerance | -0.02mm |
CWTOLU - Cutting Width Upper Tolerance | 0.02mm |
CDX - Cutting Depth Maximum | 5mm |
APMX - Depth Of Cut Maximum | 0.8mm |
RETOLL - Corner Radius Lower Tolerance | -0.01mm |
RETOLU - Corner Radius Upper Tolerance | 0.01mm |
LIG - Insert Gauge Length | 25.05mm |
ORDCODE | L123H1-0200-RO 1105 |
CHANGEDATE | 2022-09-22 11:46:00.000 |
Hand | L |
IFS - Insert Mounting Style Code | 9 |
SSC - Insert Seat Size Code | HL |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_CCH1L_1 |
Grade | 1105 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | RO |
CEDC - Cutting Edge Count | 1 |
