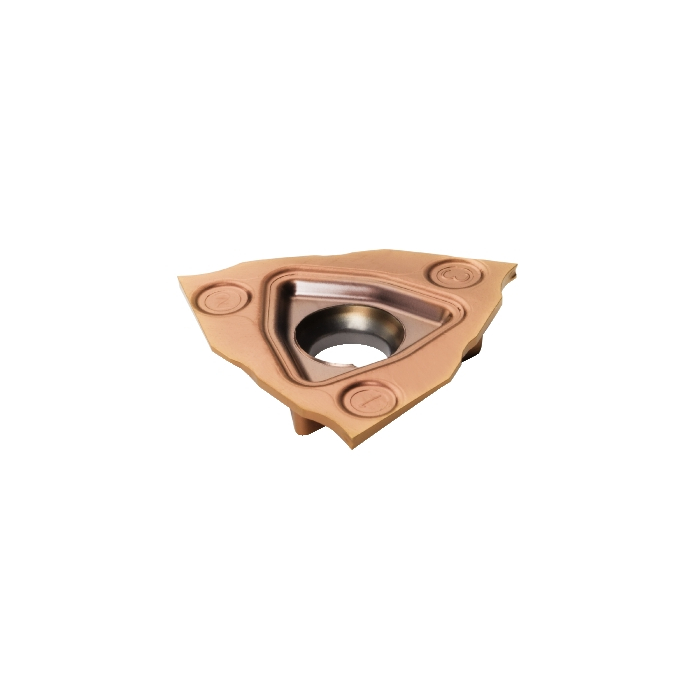

Sandvik Coromant L123U3-0150-1500-CS 1125 CoroCut™ 3 insert for parting
Next
Sandvik Coromant L123U3-0150-0500-CS 1125 CoroCut™ 3 insert for parting
Previous
![Sandvik Coromant L123U3-0150-1500-CS 1125 CoroCut™ 3 insert for parting](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/45509d700/sandvik-coromant-l123u3-0150-1500-cs-1125-corocuttm-3-insert-for-parting.jpg)
![Sandvik Coromant L123U3-0150-0500-CS 1125 CoroCut™ 3 insert for parting](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/45507a5e4/sandvik-coromant-l123u3-0150-0500-cs-1125-corocuttm-3-insert-for-parting.jpg)
R 611,80
inc. vat
In stock
SKU
5732775
CoroCut® 3 insert for parting
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 3 insert for parting
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 4.7g |
BAMS - Machine Side Body Angle | 0deg |
AN - Clearance Angle Major | 7deg |
Insert Thickness | 5.64mm |
CW - Cutting Width | 1.5mm |
CWTOLL - Cutting Width Lower Tolerance | -0.1mm |
CWTOLU - Cutting Width Upper Tolerance | 0mm |
REL - Corner Radius Left | 0mm |
RER - Corner Radius Right | 0mm |
CDX - Cutting Depth Maximum | 6.3mm |
PSIRL - Major Left Hand Cutting Edge Angle | 10deg |
RETOLL - Corner Radius Lower Tolerance | 0mm |
RETOLU - Corner Radius Upper Tolerance | 0.05mm |
CUTDIA - Work Piece Parting Diameter Maximum | 100mm |
ORDCODE | L123U3-0150-1000-CS 1125 |
CHANGEDATE | 2022-06-23 09:57:00.000 |
Hand | L |
IFS - Insert Mounting Style Code | 3 |
SSC - Insert Seat Size Code | U |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_CDU_1 |
Grade | 1125 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | CS |
CEDC - Cutting Edge Count | 3 |
