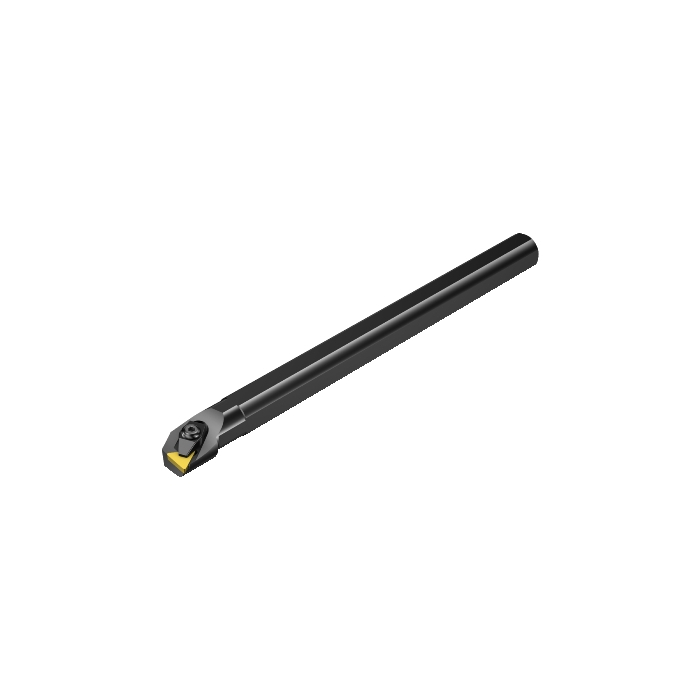

Sandvik Coromant L136.9-10-06 T-Max™ S boring bar for turning

Name: Sandvik Coromant L136.9-10-06 T-Max™ S boring bar for turning
SKU: 5732765
Price: 2178.10 ZAR
Availability: InStock

R 2 178,10 inc. vat

In stock

SKU

5732765

T-Max® S boring bar for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

T-Max® S boring bar for turning

More Information
DCON - Connection Diameter	10mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	125mm
BD - Body Diameter	10mm
TQ - Torque	2Nm
WT - Weight Of Item	0.087kg
OAL - Overall Length	125mm
OHX - Maximum Overhang	40mm
LSC - Clamping Length	105mm
KAPR - Tool Cutting Edge Angle	91deg
RMPX - Maximum Ramping Angle	0deg
DMIN - Minimum Bore Diameter	12mm
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
OHN - Minimum Overhang	20mm
WF - Functional Width	6.5mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	-7deg
AN - Clearance Angle Major	7deg
IC - Inscribed Circle Diameter	3.96875mm
RE - Corner Radius	0.198437mm
Insert Thickness	1.5875mm
H - Shank Height	9mm
ORDCODE	L136.9-10-06
ADINTMS - Adaptive Interface Machine Direction	M_CYLF3_G1000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-04-07 01:33:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_TC0601_1
Hand	L
MIID - Master Insert Identification	TCGR 06 01 02
SC - Insert Shape Code	T
SSC - Insert Seat Size Code	06
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
