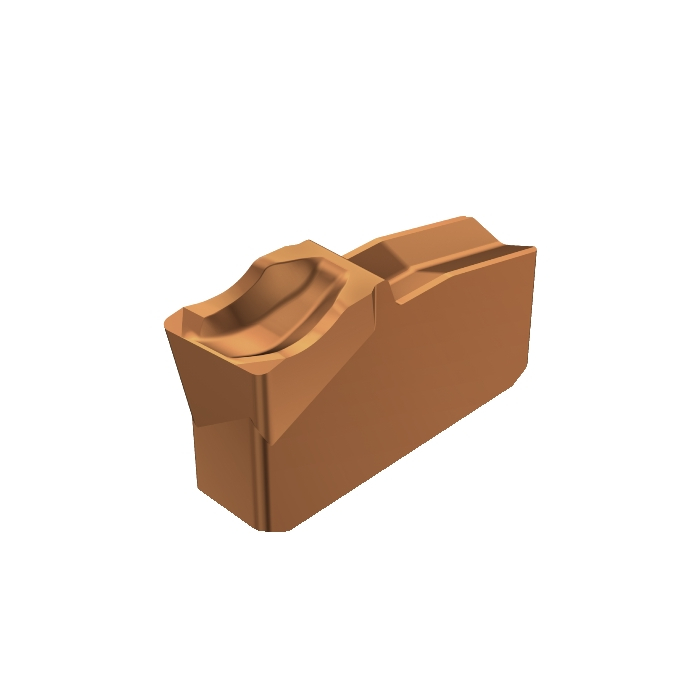

Sandvik Coromant L151.2-300 05-5E 1145 T-Max™ Q-Cut insert for parting
Next
Sandvik Coromant L151.2-200 15-5F 1125 T-Max™ Q-Cut insert for parting
Previous
![Sandvik Coromant L151.2-300 05-5E 1145 T-Max™ Q-Cut insert for parting](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/460551e22/sandvik-coromant-l151-2-300-05-5e-1145-t-maxtm-q-cut-insert-for-parting.jpg)
![Sandvik Coromant L151.2-200 15-5F 1125 T-Max™ Q-Cut insert for parting](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/4603605f8/sandvik-coromant-l151-2-200-15-5f-1125-t-maxtm-q-cut-insert-for-parting.jpg)
R 290,95
inc. vat
In stock
SKU
5734283
T-Max® Q-Cut insert for parting
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® Q-Cut insert for parting
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 1.6g |
BAMS - Machine Side Body Angle | 0deg |
AN - Clearance Angle Major | 7deg |
Insert Thickness | 6.787mm |
CW - Cutting Width | 3mm |
CWTOLL - Cutting Width Lower Tolerance | 0mm |
CWTOLU - Cutting Width Upper Tolerance | 0.25mm |
REL - Corner Radius Left | 0.3mm |
RER - Corner Radius Right | 0.3mm |
PSIRL - Major Left Hand Cutting Edge Angle | 5deg |
RETOLL - Corner Radius Lower Tolerance | -0.1mm |
RETOLU - Corner Radius Upper Tolerance | 0.1mm |
ORDCODE | L151.2-300 05-4E 1145 |
CHANGEDATE | 2022-06-23 10:01:00.000 |
Hand | L |
IFS - Insert Mounting Style Code | 7 |
SSC - Insert Seat Size Code | 30 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_CB2G30_1 |
Grade | 1145 |
COATING | PVD TiAlN+TiAlN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | 4E |
CEDC - Cutting Edge Count | 1 |
